| Overall Design & Structure | |
|---|---|

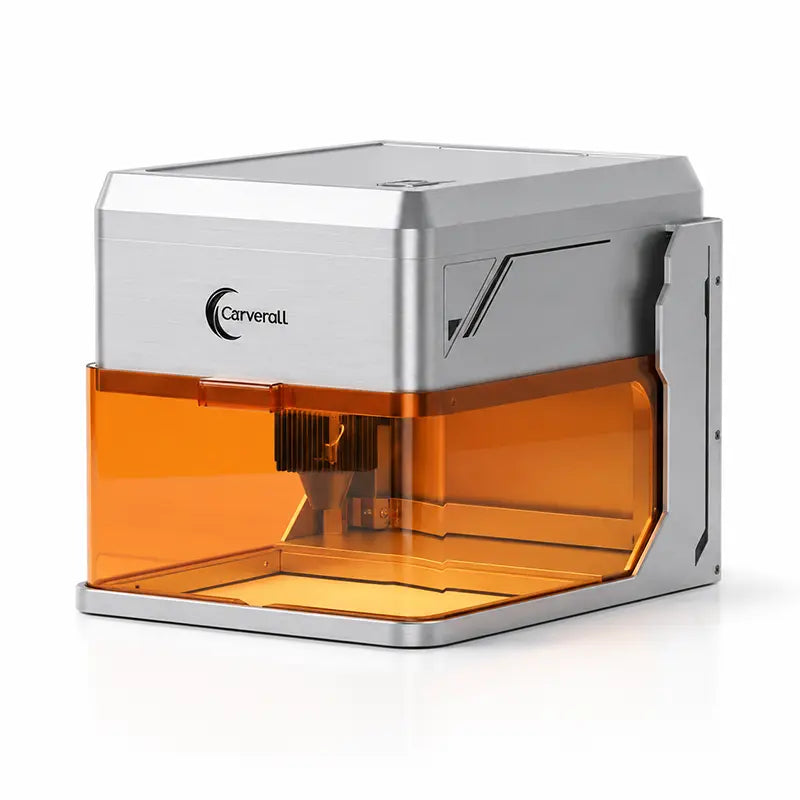

| Product Model | A1 Pro(Pre-installed with Camera) |
| Frame Material | High-strength anodized aluminum, ABS Plastic, stable mechanical structure |
| Machine Size | 232*293*228mm |
| Engraving Area | 110 × 110 mm |
| Shield Cover | Optional protective enclosure |
| Net Weight | Approx. 2 kg |
| Laser Module | |

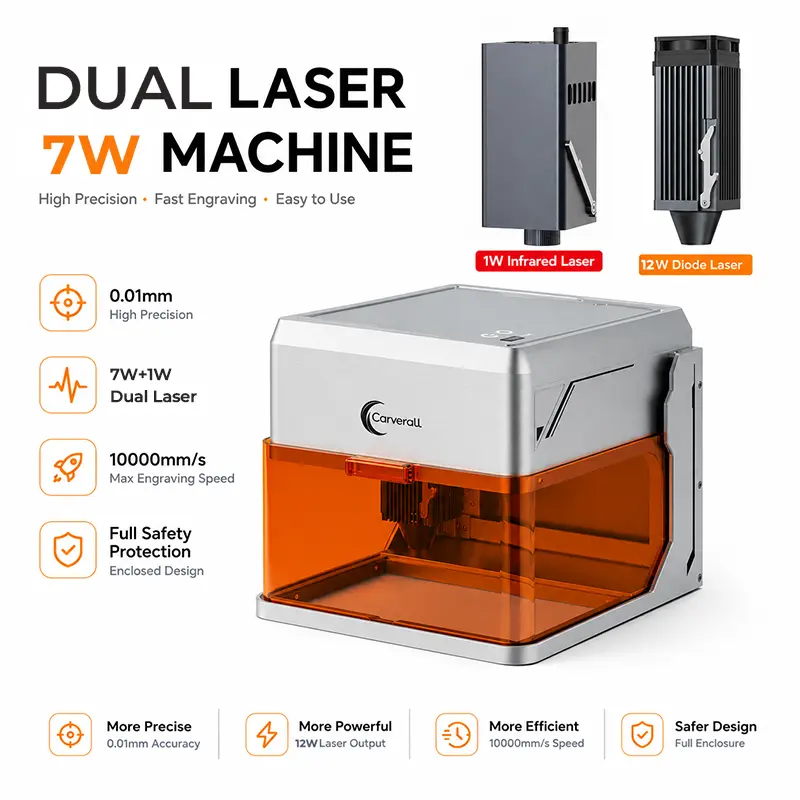

| Laser Type | 7w/12w Diode Laser (Air-cooled),1w infrared laser |
| Laser Power | 7w/12w/1w optical output |
| Wavelength | 455 nm (Blue diode)/1064 nm (Infrared laser) |
| Spot Size | Ultra-fine compressed spot for high-precision engraving |
| Laser Lifespan | > 10,000 hours (27°C environment) |
| Max Engraving Speed | 12,000 mm/min |
| Electronics & Control | |
| Input Voltage | DC 24V power supply |
| Data Transmission | USB wired & WiFi wireless |
| Mainboard | 32-bit MCU, GRBL-based control system |
| Software & Compatibility | |
| Supported Software | CutLabX, LightBurn, LaserGRBL |
| Operating Systems | Windows, macOS, Android, iOS |
| Supported Formats | JPG, JPEG, PNG, BMP, SVG, DXF, G-code, PLT |
| Supported Materials | |
| Engraving Compatibility |
Wood, Bamboo, Leather, Cardboard, Kraft Paper, Fabric, Slate, Stone, Rubber, Acrylic (coated), Painted Metal, Glass (coated), Anodized Aluminum, and infrared laser module machine for metals that non-coated |
| Safety & Durability | |
| Safety Features |
Optional protective shield cover, goggles included, Limit-switch safety mechanism |
| Thermal Management | Air-cooled system for long-term stability |
| Optional Accessories | |
| Available Add-ons |
Rotary module, Air pump Protective shield cover, Riser extensions |
| What's in the Box | |
| Standard Accessories |
Power supply, Air Pump, USB cable, Goggles, TF card & reader, Marker, Cleaning brush, User manual, Test paper, Height risers |
Предлагается широкий спектр дополнительных аксессуаров для расширения ваших возможностей:
Their key differences lie in power, engraving speed, cutting ability, and material compatibility.
| Feature | 7W Diode Laser | 12W Diode Laser |
|---|---|---|
| Power Output | Lower power, ideal for engraving | Nearly double the power, better for cutting |
| Engraving Capability | Fine engraving on soft materials like wood & leather | Faster, deeper engraving on more materials |
| Cutting Ability | Up to 3mm wood, basic acrylic cutting | Up to 8mm wood, clean 3mm acrylic cutting |
| Speed | Slower processing, may need multiple passes | Faster results with fewer passes |
| Precision | Slightly finer for detailed engraving | Still precise, but spot size may be slightly larger |
| Size & Power Consumption | Compact and energy-efficient | Larger module, needs stronger cooling |
| Recommended For | Hobbyists, DIY, education, small crafts | Pro users, small businesses, batch production |
👉 Tip: Choose 7W for compact, detailed engraving. Choose 12W for more power, speed, and cutting versatility.
