Fiber laser engraving aluminum is one of the most practical applications for a 1064 nm galvo system—but “aluminum” is not one material condition. Bare aluminum, black anodized aluminum, clear anodized parts, powder-coated housings, and thick aluminum plates can all require different process strategies. The best result depends on whether you need contrast, permanent depth, coating removal, fine text, a Data Matrix code, or decorative texture.

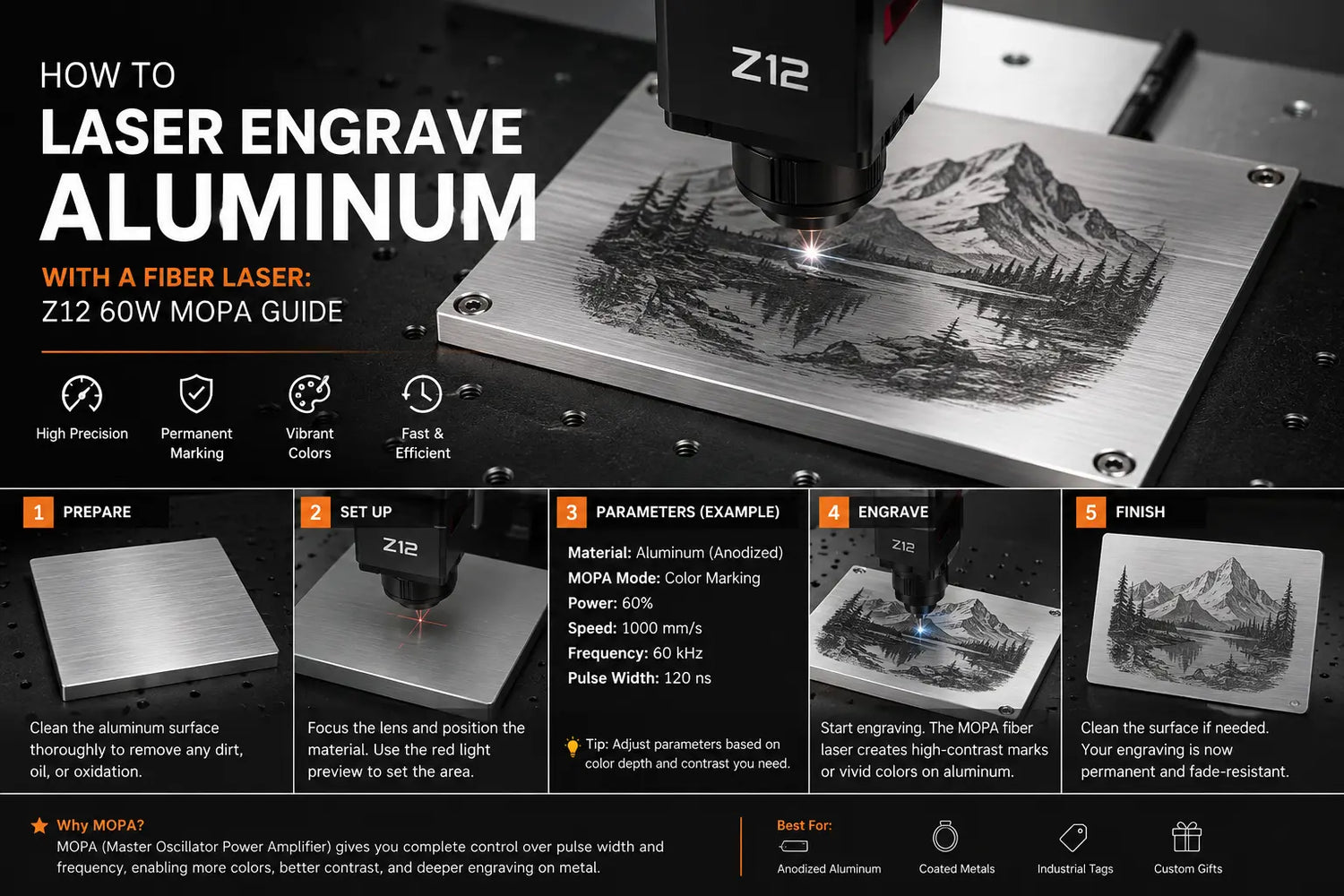

This guide explains how to approach aluminum with the Carverall Z12 fiber laser engraver, with the main focus on the 60W MOPA configuration. It also shows where the Z12 20W/30W standard fiber configurations and the 50W 3D relief configuration fit, so you can choose the right workflow instead of forcing one parameter recipe onto every aluminum part.
Important: treat every setting as a starting point for testing, not a universal recipe. Alloy, anodizing chemistry, coating thickness, lens, focus, geometry, and desired finish can change the result dramatically. For a systematic method, see our 60W MOPA fiber laser settings guide.
Why Aluminum Engraves Differently from Steel
Aluminum is widely used for control panels, electronics housings, automotive parts, tools, tags, tumblers, fixtures, nameplates, and industrial components. A fiber laser can create readable marks without inks, labels, or physical contact, but the surface response varies more than many first-time users expect.
On bare aluminum, the laser interacts directly with the metal. Depending on pulse energy, speed, frequency, hatch spacing, focus, and number of passes, you can create a bright etched mark, a darker textured mark, or remove material for real depth. On anodized aluminum, the laser may remove or modify the anodized layer to expose a contrasting area. That often makes anodized parts easier to mark with high visual contrast than untreated aluminum.
KEYENCE notes that aluminum alloys and surface conditions respond differently, and specifically highlights anodized aluminum as a strong candidate for high-contrast marking. Their application guidance also recommends tuning pulse behavior and hatch strategy rather than relying on a single recipe. For more background, see KEYENCE’s aluminum laser marking and engraving overview.
Which Carverall Z12 Configuration Is Best for Aluminum?
| Z12 Configuration | Best Fit on Aluminum | Why Choose It |
|---|---|---|
| 20W / 30W Standard Fiber | Logos, serial numbers, QR/Data Matrix codes, anodized layer removal, routine production marking | Simple, efficient choice when the target is repeatable flat marking rather than a wide pulse-control window or 3D relief. |
| 50W 3D Relief | Deeper engraving, sculpted relief, depth-mapped graphics, parts with height variation | Best when the project is about physical depth or 3D surface geometry rather than only contrast. |
| 60W MOPA | High-control marking, thin or heat-sensitive parts, process optimization across different finishes, premium surface effects | Independent pulse-width and frequency control gives you a larger tuning window for balancing heat input, contrast, texture, and edge quality. |
The key point is that MOPA is not mandatory for every aluminum job. A standard fiber laser can be excellent for normal anodized tags, logos, codes, and identification marks. The reason to choose 60W MOPA is flexibility: when you need to deliberately change how energy is delivered to the surface, pulse width becomes another powerful control variable.
LightBurn explains that MOPA fiber lasers allow Q-Pulse Width adjustment in addition to frequency, while standard Q-switched systems do not offer the same independent timing control. See the LightBurn Galvo-specific settings documentation for the underlying controls.
60W MOPA Aluminum Engraving: What to Tune First
For MOPA work, avoid changing five variables at once. A repeatable workflow is more valuable than a “magic” setting. Start with a representative scrap piece from the same batch as the production part, focus carefully, and build a test matrix.
1. Start with speed and power
Speed and power establish the basic energy level delivered to the surface. If the mark is too weak, reduce speed or increase power cautiously. If the surface is excessively melted, rough, or surrounded by a heat halo, move in the opposite direction. For thin aluminum sheets or assembled housings, it is especially important to watch for distortion and excess thermal load.
2. Tune frequency for pulse density
Frequency changes how often the laser pulses. LightBurn’s documentation describes lower frequencies as fewer, higher-energy pulses and higher frequencies as more frequent pulses with less energy per pulse, although the exact result depends on the laser and other settings. On aluminum, frequency can strongly affect texture, brightness, edge definition, and how aggressively material is removed.
3. Use pulse width as the MOPA advantage
Q-Pulse Width controls pulse duration on a MOPA source. Instead of assuming “shorter is always better” or “longer is always darker,” test pulse width against your actual finish requirement. A shorter pulse can reduce thermal spread in some applications, while a longer pulse can produce a different melt/texture response. The useful range depends on your source, alloy, coating, lens, frequency, and power.
4. Optimize hatch spacing and angle
Hatch spacing controls overlap between scan lines. Too wide and the fill can look striped or incomplete. Too tight and you may add unnecessary heat. For filled logos and deep engraving, alternating hatch angles between passes can help distribute removal more evenly and reduce directional texture.
5. Separate roughing from finishing
For deeper engraving, do not expect one layer to perform every job. A practical process can use a more aggressive roughing layer for material removal, followed by one or more lighter finishing layers to clean the floor and sharpen edges. If depth is the primary goal, compare this workflow with the dedicated 60W MOPA vs 50W 3D deep metal engraving guide.
Use a Material Test Instead of Copying Random Settings
LightBurn’s Material Test generator is one of the most useful tools for building a reliable aluminum process. It can vary speed, power, interval, passes, frequency, and—in supported MOPA setups—Q-Pulse Width. The official documentation even illustrates a material test on black anodized aluminum.
A simple development sequence is:
- Test speed × power to find a stable operating window.
- Hold speed/power constant and test frequency × pulse width on the 60W MOPA.
- Refine hatch interval for a more uniform fill.
- Compare one pass vs multiple passes if depth is needed.
- Record the exact alloy, finish, lens, focus height, and orientation with the winning settings.
See LightBurn’s official Material Test documentation for details. A saved parameter library built from your own samples is far more dependable than a generic online chart.
Bare Aluminum: Contrast vs Depth
With bare aluminum, first decide whether you need a surface mark or engraved depth. Surface marking prioritizes readability, edge quality, and cycle time. Deep engraving prioritizes material removal and usually requires multiple passes, debris management, and a finishing strategy.
For ordinary industrial identifiers, a Z12 20W or 30W standard fiber configuration can be enough. If you regularly switch between alloys and finishes, need finer control over thermal behavior, or want a broader process-development window, the 60W MOPA becomes more valuable. If the artwork requires substantial relief or depth variation, the 50W 3D configuration may be the more natural choice.
For production work, inspect the mark at the viewing angle and lighting condition that the customer will actually use. A mark that looks dark under one light can look bright under another because laser processing changes surface texture and reflectivity.
Anodized Aluminum: High Contrast with Less Guesswork
Anodized aluminum is common in electronics, machine panels, tags, premium consumer products, and industrial nameplates. The anodized oxide layer can create excellent contrast when it is selectively removed or modified. KEYENCE’s aluminum application guidance notes that anodized surfaces can produce crisp, high-contrast marks with relatively little material removal, while bare aluminum often requires more parameter tuning. See KEYENCE’s guide to laser engraving aluminum.
For many normal anodized jobs, a standard 20W/30W fiber configuration is already a strong option. Choose the 60W MOPA when you want additional control over the interaction—especially when protecting a thin part, dialing in a premium finish, or building several recipes for different anodizing colors and thicknesses.
A useful rule for process development is to use the least aggressive setting that meets the contrast and durability requirement. This reduces unnecessary heat and helps preserve fine detail in small text, logos, and codes.
When the 50W 3D Z12 Makes More Sense
Not every aluminum project should be optimized around MOPA. If you are producing medallion-style relief, mold-like textures, sculpted graphics, or depth-mapped artwork, the Z12 50W 3D configuration is built for a different objective: controlling engraving across depth and geometry.
For a flat logo on an anodized plate, 3D capability may add little value. For a recessed emblem with multiple height levels, it can become the defining feature. Before choosing, review our Z12 standard fiber vs 50W 3D vs 60W MOPA comparison.
Cylindrical Aluminum Parts and Rotary Engraving
Aluminum tumblers, flashlight bodies, tubes, rings, and cylindrical machine parts introduce another challenge: maintaining position around a curved surface. The Z12 supports rotary workflows using the Carverall MD18 rotary chuck.
For coated or anodized cylindrical parts, run a small test on the least visible area first. Confirm rotational steps, circumference, artwork scaling, focus, and seam alignment before engraving the final design. If the part diameter changes significantly, re-check focus and rotary calibration rather than reusing the previous job blindly.
Common Aluminum Engraving Problems
The mark is too light
Re-check focus first. Then test a lower speed, more power, a different frequency, or additional passes. On MOPA, include pulse width in the test matrix rather than assuming it should stay fixed.
The mark is rough or has a large heat halo
Reduce total heat input. Test higher speed, lower power, wider hatch spacing, a different frequency/pulse-width combination, or more controlled finishing passes instead of one aggressive pass.
Fine text closes up
Use a less aggressive layer, increase spacing where appropriate, confirm focus, and consider a separate parameter set for fine text instead of using the same recipe as a large filled logo.
Deep engraving has an uneven floor
Alternate hatch angles, use multiple controlled passes, clear debris, and add a finishing layer. For significant relief, evaluate whether the Z12 50W 3D configuration is a better fit.
The anodized coating burns beyond the design edge
Reduce the thermal load and test a faster/lower-energy process. The goal is controlled layer removal or modification, not maximum material removal.
Safety and Fume Control Matter
Fiber lasers can present serious eye, skin, reflection, fire, and process-fume hazards. Aluminum parts can also produce particulates and fumes as coatings or surface contaminants are processed. Use appropriate guarding, interlocks, laser-rated protection, and local extraction for your setup. OSHA’s laser guidance states that adequate ventilation should be used to reduce potentially hazardous fumes and vapors generated by laser target interactions.
For a more controlled workspace, review the Carverall Fiber Laser Safety Enclosure and OSHA’s Laser Hazards guidance. Never leave a running laser job unattended.
Recommended Z12 Workflow for Aluminum
- Identify the aluminum: bare, anodized, coated, thin sheet, or thick part.
- Define the goal: contrast, coating removal, fine code, texture, or real depth.
- Choose the Z12 configuration based on the job—not only maximum wattage.
- Clean and fixture the sample; focus carefully.
- Run a small material test and document every variable.
- On 60W MOPA, refine frequency and pulse width after finding a stable speed/power window.
- For depth, separate roughing and finishing passes.
- Verify readability, edge quality, distortion, and durability before production.
- Save the winning settings with alloy, finish, lens, and fixture notes.
FAQ: Fiber Laser Engraving Aluminum
Can a fiber laser engrave bare aluminum?
Yes. A 1064 nm fiber laser is widely used for marking and engraving bare aluminum. The ideal settings depend on alloy, surface finish, lens, focus, and whether you need contrast or physical depth.
Is 60W MOPA better than a standard fiber laser for aluminum?
It is more adjustable, not automatically “better” for every job. Standard fiber is often excellent for routine marks. A 60W MOPA is most valuable when you need independent pulse-width control to optimize heat input, texture, contrast, and edge quality across different aluminum finishes.
Can a fiber laser engrave anodized aluminum?
Yes. Fiber lasers can create high-contrast marks on anodized aluminum by modifying or removing the anodized layer. Test on the exact anodized finish because color, thickness, and chemistry can change the result.
Which Z12 should I choose for deep aluminum engraving?
For conventional deep engraving, the 60W MOPA gives strong process control and flexible roughing/finishing strategies. If your project requires true 3D relief or depth-mapped artwork, compare it with the Z12 50W 3D configuration.
Should I use one parameter chart for every aluminum alloy?
No. Use charts only as starting references. Build a material test for the exact alloy and finish, then save a verified recipe for production.
Final Takeaway
The best Z12 for aluminum depends on what “good” means for your job. 20W/30W standard fiber is a practical choice for routine flat marking and anodized parts. 50W 3D is the specialized option for relief and depth-driven work. 60W MOPA offers the broadest tuning flexibility when finish quality, thermal control, and process development matter.
If aluminum is one of several materials you process, the MOPA configuration can be especially useful because it gives you more ways to shape the laser-material interaction instead of only changing speed, power, and frequency. Explore the Carverall Z12 or browse more application guides in Z12 Tutorials.
