Comment régler la mise au point
Réglage électrique de la hauteur et mise au point par superposition de 3 points
1/12
Graveur laser à fibre Carverall Z12 JPT MOPA
- Plusieurs options de puissance : 20W MAX / 30W MAX/ 50W 3D / 60W JPT MOPA
- Système de levage électrique de l’axe Z
- Assistance par deux lumières rouges
- Gravure profonde et reliefs 3D
- Zone de travail flexible avec deux lentilles
- Logiciels selon la version : EZCAD / LightBurn (20W, 30W, 60W MOPA); RK-CAD (50W 3D)
- Gravure à ultra-haute résolution
Prix final
Prix conseillé
€1.166,95
Économisez €-1.166,95
Autres offres exclusives
Contact us for current promotions and eligibility details.
Livraison rapide et paiement sécurisé
We accept Klarna, Affirm and many other installment payment and free shipping is available on eligible orders. Secure payment options are shown at checkout.
École, administration ou ONG ?
Schools, government organizations and NGOs can contact us for a formal quotation.
Retours sous 30 jours · Garantie 1 an
We accept 2 years warranty of the laser souce and 1 year for whole machine.
Fonctionnalités
Trois façons d’y apporter votre touche.
Commencez par le résultat que vous souhaitez obtenir.
60W MOPADes couleurs de caractèreDécouvrez des créations en couleur sur des surfaces adaptées.50W 3DDe la profondeur avec un résultat 3DApportez des couches et de la texture à vos créations.MARQUAGE À PLATLes détails du quotidien, personnalisésPréparez logos, noms et identifiants pour des objets adaptés.
60W MOPA / RELIEF / SOURCE LASER JPT
Donnez vie au métal avec la couleur
Transformez l’acier inoxydable en une toile aux couleurs éclatantes avec le Z12 60W MOPA. Créez des bijoux personnalisés, des plaques distinctives et des cadeaux sur mesure, sans encres ni pigments.
60W MOPA
Faites de la couleur votre signature.
Donnez facilement de l’éclat à vos couleurs.
50W 3D / RELIEF / SOURCE LASER MAX
Gravez en profondeur 3D. Révélez chaque détail.
Donnez vie à des motifs complexes avec la version Z12 50W 3D. Réalisez des gravures en relief détaillées sur métal, des pièces personnalisées aux objets décoratifs, avec une profondeur et une texture remarquables.
50W 3D
Donnez de la profondeur à vos idées.
Tous les projets sur métal couverts
Ce qui distingue le Carverall Z12
Conçu pour les professionnels, chaque détail du Z12 vise à offrir davantage de précision, une fiabilité durable et une expérience de gravure plus fluide, de la configuration à la production.
Durée de vie du laser
Source laser JPT ou MAX de 100 000 heures
Résolution 8K
Précision de 0,01 mm pour des lignes fines et des marquages détaillés
Au-delà de l’établi
Desserrez la vis, puis faites pivoter l’ensemble de 90° pour l’installation.
Améliorez votre espace de travail.
Champ de marquage maximal de 200mm x 200mm, conçu pour une capacité et des performances accrues.

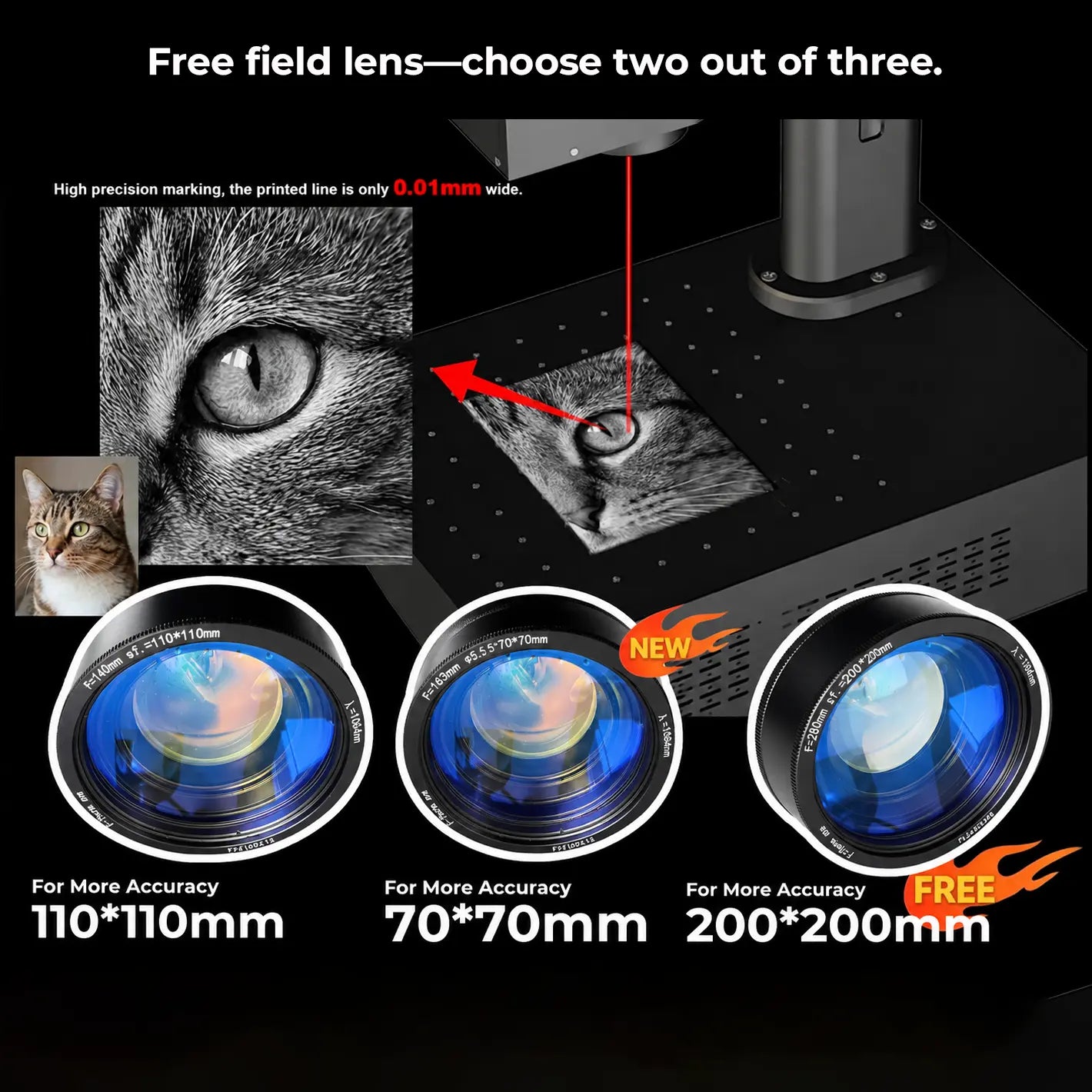

Lentille F offerte en bonus
Équipé de base d’une lentille 200 × 200 mm, avec en cadeau une lentille 110 × 110 mm ou 150 × 150 mm choisie au hasard.
Capacité maximale de découpe du métal
Les résultats de découpe présentés reposent sur des tests avec un bord de coupe de bonne qualité
Découpe de l’acier inoxydable et du laiton
Découper le métal sans effort
La machine ultime pour le ROI
30% moins cher
Prix de départ : 1 280 USD
50% plus rapide
Vitesse supérieure : 15 000 mm/s
300% plus grand
Surface plus grande : 200 × 200 mm
Découvrez le Z12 en action.
60W MOPA
Plaque nominative
Découvrez le marquage en couleurs vives sur acier inoxydable, avec des résultats précis et permanents.
Mandrin rotatif MD18
Gravure rotative à 360°
Travaillez sur des bagues, des gobelets et des objets cylindriques avec une précision continue.

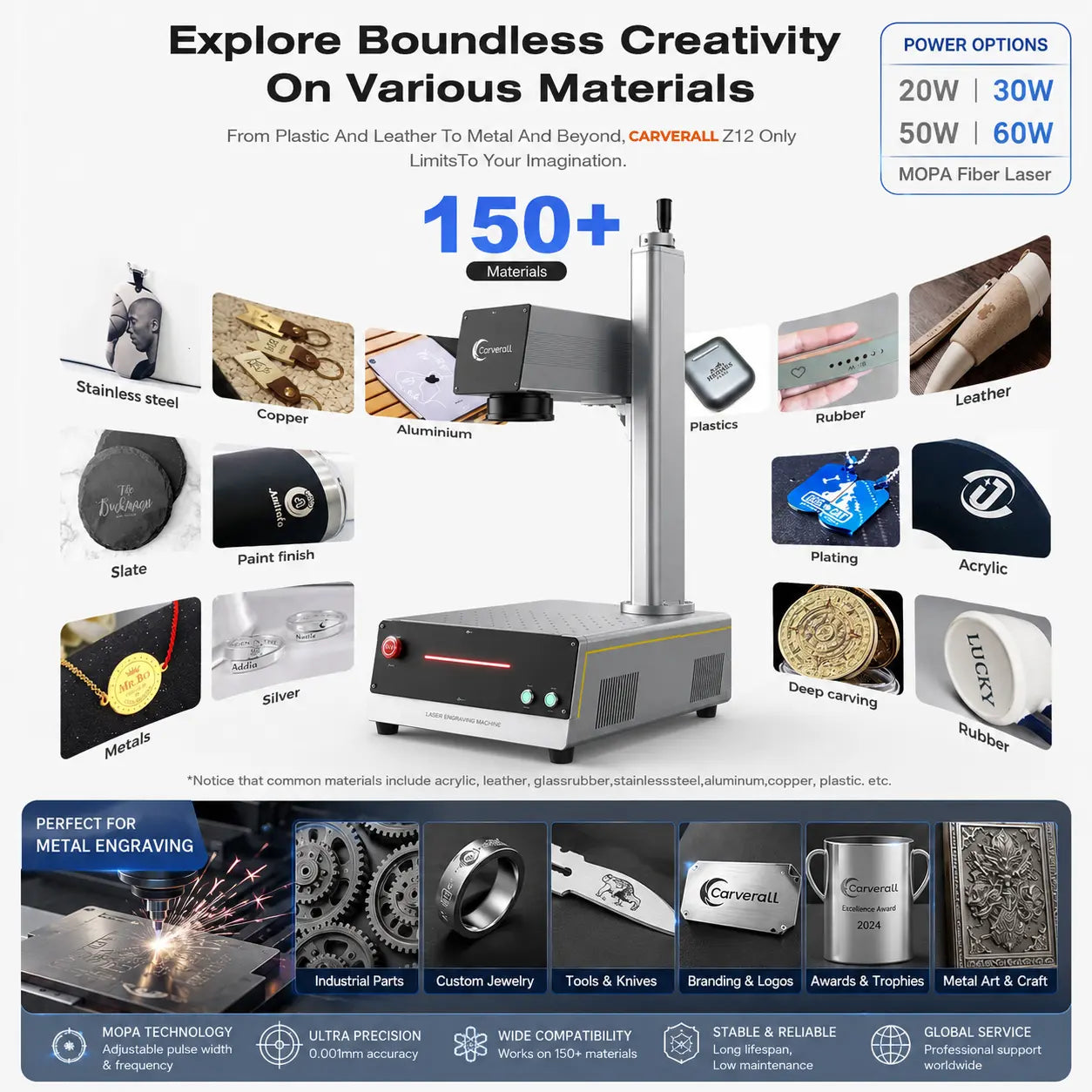

Large compatibilité
200+ matériaux
Explorez la gravure sur les métaux, les plastiques, le cuir, la pierre, l’acrylique et bien plus encore.
Des idées à regarder de plus près.
De vraies personnes. De vraies histoires avec le Z12.
Rencontrez les créateurs derrière les machines. Découvrez des moments du quotidien avec le Z12, capturés et partagés par nos clients.
Studio de bureau
Votre compagnon idéal à la maison pour créer des objets personnalisés avec précision.
Petit atelier
Aide les artisans à améliorer leur capacité de production et la qualité de leurs projets.
Activité de souvenirs
Idéal pour les porte-clés, décorations, souvenirs et objets de marque personnalisés.
Usage personnel
Des cadeaux et décorations personnalisés aux médailles uniques pour chiens et chats.
Quatre étapes pour réaliser le projet
1. Placer l’objetAlignez votre matériau sous la lentille F2. Régler la mise au point du laserActionnez l’axe Z électrique pour superposer les trois points laser3. Prévisualiser votre créationLes modes de prévisualisation « Outline » et « Frame » sont tous deux pris en charge4. Lancer la gravureAppuyez sur le bouton de démarrage pour obtenir un résultat précis.
Des accessoires variés pour simplifier vos créations
Contenu du pack de base
Carverall Z12 Compare
Swipe left to compare all models →
| Product | Z12 20W Standard Fiber | Z12 30W Standard Fiber | Z12 50W 3D 3D Relief Engraving | Z12 60W MOPA MOPA Fiber |
|---|---|---|---|---|
| Laser Technology | ||||
| Laser Type | Fiber Laser | Fiber Laser | 3D Fiber Laser | MOPA Fiber Laser |
| Laser Power | 20W | 30W | 50W 3D | 60W MOPA |
| Laser Wavelength | 1064 nm | 1064 nm | 1064 nm | 1064 nm |
| Expected Lifespan | 100,000 hours | 100,000 hours | 100,000 hours | 100,000 hours |
| Laser Source | MAX | MAX | MAX | JPT |
| Processing Capacity | ||||
| Processing Mode |
Laser Engraving Laser Cutting |
Laser Engraving Laser Cutting |
Laser Engraving Laser Cutting 3D Relief Engraving |
Laser Engraving Laser Cutting MOPA Color Marking |
| Supported Materials | Stainless steel, aluminum, brass, copper, gold, silver, stone, black acrylic, leather and plastic | |||
| Working Area | 4.33″ × 4.33″ (110 × 110 mm) 5.9″ × 5.9″ (150 × 150 mm) — optional lens 7.8″ × 7.8″ (200 × 200 mm) — optional lens | |||
| Max. Working Speed | 15,000 mm/s | 15,000 mm/s | 15,000 mm/s | 15,000 mm/s |
| Max. Stainless Steel Cutting Capacity Multiple passes required | 0.6 mm | 0.8 mm | 1.6 mm | 2 mm |
| Color Marking | Supported | Supported | Supported | Advanced MOPA Color Marking |
| 360° Rotary Engraving | Supported | Supported | Supported | Supported |
| Foot Pedal Function | External Foot Pedal | External Foot Pedal | External Foot Pedal | External Foot Pedal |
| Power Adapter Input Voltage | 100–230V | 100–230V | 100–230V | 100–230V |
| Accuracy & Precision | ||||
| Laser Spot Size | 0.01 mm | 0.01 mm | 0.01 mm | 0.01 mm |
| XY Positioning Accuracy | 0.001 mm | 0.001 mm | 0.001 mm | 0.001 mm |
| Focus Mode |
Electric Focus Manual Focus |
Electric Focus Manual Focus |
Electric Focus Manual Focus |
Electric Focus Manual Focus |
| Software & Compatibility | ||||
| Supported Software |
EZCAD LightBurn |
EZCAD LightBurn |
RK-CAD |
EZCAD LightBurn |
| Operating System | Windows / macOS | Windows / macOS | Windows / macOS | Windows / macOS |
| Connection Method | USB | USB | USB | USB |
| Supported File Formats | BMP, GIF, JPG, JPEG, DXF, DST, AI, TGA, PNG, TIF, TIFF, SVG, G-CODE, PLT and more | |||
FAQ
What Materials Can the Z12 Fiber Laser Engrave?
The Z12 is designed primarily for metal marking and engraving, including stainless steel, aluminum, brass, copper, gold, silver, coated metals and anodized aluminum. It can also mark certain engineering plastics. Suitability and results depend on the material, laser version and settings.
Does the Z12 Support Rotary Engraving?
Yes. The Z12 supports a compatible MD18 rotary attachment for cylindrical objects such as rings, tubes and tumblers. Check the attachment, object dimensions and your selected package before ordering; a rotary attachment is not included with every configuration.
Can the Laser Arm Be Adjusted for Different Engraving Angles?
Yes. The Z12 has a 90° rotatable laser arm for flexible positioning when working with large or irregularly shaped objects. Follow the machine's setup instructions and refocus after changing the working position.
Does the Z12 Have Electric Height Adjustment?
Yes. Electric Z-axis lifting lets you adjust the laser head height using the controls when working with objects of different heights. Electric lifting is height adjustment, not automatic focusing; the correct focus still needs to be set for your lens and workpiece.
Which Z12 Version Should I Choose?
- 20W: For everyday metal marking and fine engraving.
- 30W: A higher-power option for metal marking and engraving.
- 50W 3D: For relief-engraving workflows with the matching software.
- 60W MOPA: For adjustable-pulse marking, including color-marking applications on suitable metals.
Choose according to your materials and intended results, not power alone.
Which Software Does the Z12 Use?
Software compatibility depends on the installed controller and Z12 version. The current product comparison lists EZCAD and LightBurn for the 20W, 30W and 60W MOPA versions, and RK-CAD for the 50W 3D version.
Confirm the required software, operating system, controller compatibility and licence for your specific machine before purchase. Do not assume every version supports the same software or relief workflow.
Is the Z12 Suitable for Beginners?
The Z12 can suit committed beginners as well as professional users. Allow time to learn focusing, material settings and the software workflow, and begin with test pieces. Read the supplied safety instructions and use the required protective measures before operating the machine.
What Is the Difference Between MOPA and Standard Fiber Lasers?
Standard fiber lasers are well suited to many metal-marking tasks, including text, logos, serial numbers and QR codes. MOPA adds greater control over pulse duration and frequency, offering more flexibility for selected materials and finishes.
The Z12 60W MOPA is the option to consider for color marking on suitable stainless steel and titanium. Color and surface quality depend on the material, preparation and settings; results are not guaranteed on every metal. For dedicated relief workflows, compare the 50W 3D configuration and its software as well.
