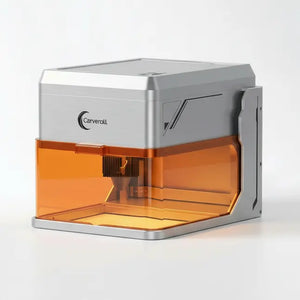

Carverall A1Pro
A A1Pro is full comply with FDA1 Laser Class I, IR or Diode Laser Optional.
Beginner Friendly & Easy to Start
Engrave With Accuracy on Any Material
Select Your Laser. Unlock More Creative Power
A1 Pro goes beyond a standard engraver with its swappable laser modules. Switch effortlessly to match different materials and project needs. From custom gifts and jewelry to tags, signage, and small product designs, it adapts to everything you create with precision and freedom.

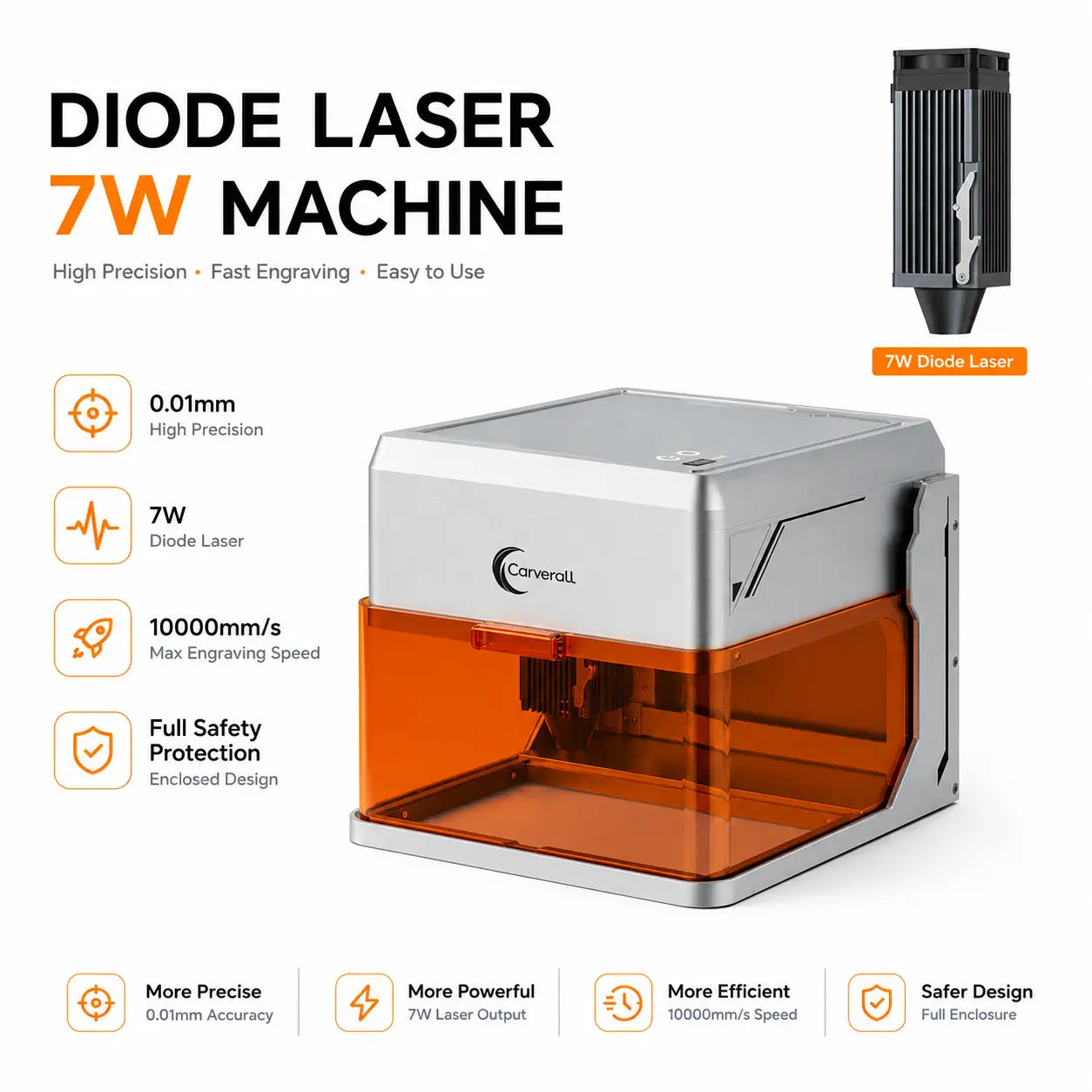

Cut & Engrave: 7W or 12W Diode Version
200+ Materials

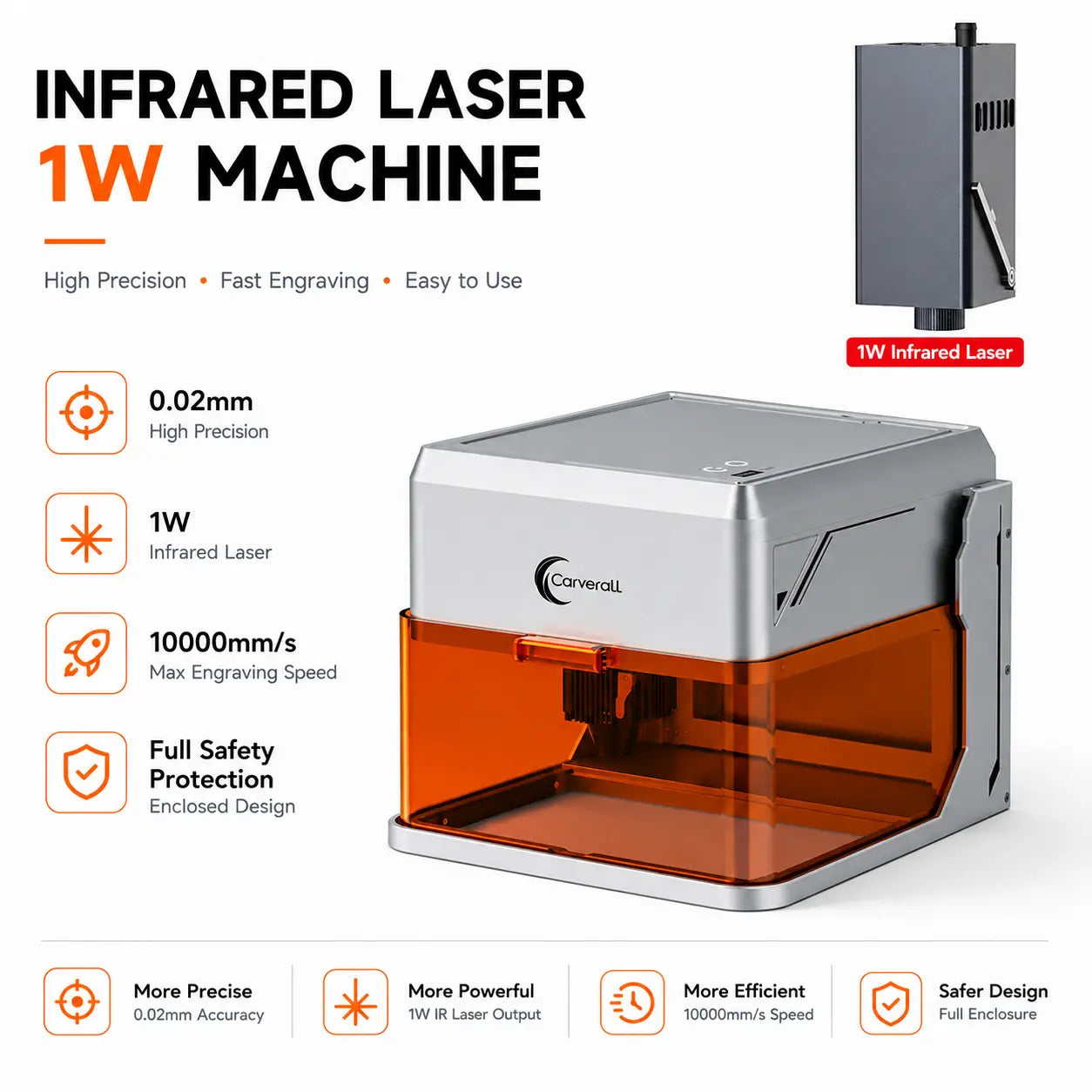

Engrave: 1W Infrared Module
100+ Materials
Ultra-precise laser
Laser Spot Size 0.01mm, ensures highly intricate and realistic engravings.
Perfect for Home, Studio & On the Go
Its compact, fully enclosed design makes the A1 Pro ideal for any environment.
EverydayLaser Engraving
Design onTravel
WorkshopTool
WorkInhouse
Workable on 200+ Materials
Acrylic
Wood
Bamboo
Paper
Stone
Metals
Glass
Fabric
FDA Class 1 Safety Laser
The protective enclosure and viewing window combine to deliver safety and ease of use.
Air Purifier Extension
Keep your workspace clean and odor-free with our Air Purifier Extension.
Quick Focus Tool
Easily achieve the right focus in seconds—protects your eyes and ensures precise engraving.
Tilt Detection Safety
A built-in gyroscope halts operation if the machine tilts unexpectedly—protecting you and your workspace.
Enclosure Safety Detection
Automatically halts operation if the enclosure isn’t properly closed—keeping you safe at all times.
Seamless Compatibility
All-New Free CutLabX App & Fully Compatible with LightBurn & LaserGRBL
A1Pro Parameter
| Overall Design & Structure | |
|---|---|
| Product Model | A1 Pro(Pre-installed with Camera) |
| Frame Material | High-strength anodized aluminum, ABS Plastic, stable mechanical structure |
| Machine Size | 232*293*228mm |
| Engraving Area | 110 × 110 mm |
| Shield Cover | Optional protective enclosure |
| Net Weight | Approx. 2 kg |
| Laser Module | |
| Laser Type | 7w/12w Diode Laser (Air-cooled),1w infrared laser |
| Laser Power | 7w/12w/1w optical output |
| Wavelength | 455 nm (Blue diode)/1064 nm (Infrared laser) |
| Spot Size | Ultra-fine compressed spot for high-precision engraving |
| Laser Lifespan | > 10,000 hours (27°C environment) |
| Max Engraving Speed | 12,000 mm/min |
| Electronics & Control | |
| Input Voltage | DC 24V power supply |
| Data Transmission | USB wired & WiFi wireless |
| Mainboard | 32-bit MCU, GRBL-based control system |
| Software & Compatibility | |
| Supported Software | CutLabX, LightBurn, LaserGRBL |
| Operating Systems | Windows, macOS, Android, iOS |
| Supported Formats | JPG, JPEG, PNG, BMP, SVG, DXF, G-code, PLT |
| Supported Materials | |
| Engraving Compatibility |
Wood, Bamboo, Leather, Cardboard, Kraft Paper, Fabric, Slate, Stone, Rubber, Acrylic (coated), Painted Metal, Glass (coated), Anodized Aluminum, and infrared laser module machine for metals that non-coated |
| Safety & Durability | |
| Safety Features |
Optional protective shield cover, goggles included, Limit-switch safety mechanism |
| Thermal Management | Air-cooled system for long-term stability |
| Optional Accessories | |
| Available Add-ons |
Rotary module, Air pump Protective shield cover, Riser extensions |
| What's in the Box | |
| Standard Accessories |
Power supply, Air Pump, USB cable, Goggles, TF card & reader, Marker, Cleaning brush, User manual, Test paper, Height risers |
After-sales Support
-FAQ-
1. What materials can the A1 Pro engrave or cut?
Engraving Capabilities:
- Blue Laser (7W/12W): Easily engraves on non-metal materials including wood, leather, rubber, plastic, paper, cardboard, fabric, coated metals, coated glass, acrylic, ceramic, and stone.
- Infrared Laser (1W): Capable of engraving on almost all hard materials, including gold, stainless steel, copper, aluminum, plastic, leather, coated glass, coated metals, acrylic, and even electronic components.
- Cutting Capabilities (Blue Laser): Cuts 5–8mm plywood and 8–10mm pine board (depending on density and material type).
2. What software and devices are supported?
The A1 offers broad software compatibility and flexible device support:
- Compatible Software: CutLabX, LightBurn, LaserGRBL
- Device Support: Works with smartphones, tablets, and desktop computers
- File Transfer Methods: USB, Wi-Fi, and TF card – supports fully offline operation
3. What optional modules and accessories are available?
A wide range of optional accessories are available to expand your capabilities:
- Rotary Axis Module – Enables 360° cylindrical engraving
- Rotary Chuck Fixture – For precise object rotation and stabilization
- Smoke Purifier – Desktop mini air filtration system for cleaner, safer engraving
4. Is the A1Pro beginner-friendly?
Absolutely. The A1Pro is designed for both beginners and professionals:
- Easy-to-use software
- Plug-and-play hardware
- Stable connectivity
- Clear operating instructions
- Seamless compatibility with multiple systems
5. Does the A1Pro have safety protection?
Yes. Safety is a top priority for the A1Pro:
- Full protective enclosure filters 99.7% of blue laser light and meets FDA Class 1 laser safety standards
- Equipped with emergency stop, motion detection, and child lock features
- Enclosure allows safe indoor use, even around children or pets
6. What laser modules are compatible with the A1Pro, and how do I switch between them?
The A1Pro laser engraver supports three interchangeable laser modules: Diode 12W, Diode 7W, and Infrared (IR) 1W. Switching is simple — just detach the current laser head and install the one you need. No tools or complex setup required.
7. Can I use the A1Pro laser engraver with the lid open?
Yes, the A1 does not require the lid to be closed during operation. You are free to open or close the lid while the machine is running. However, for your safety, please avoid touching or placing your hands near the laser beam while it is active.
8. What’s the difference between a 7W and 12W diode laser?
Their key differences lie in power, engraving speed, cutting ability, and material compatibility.
| Feature | 7W Diode Laser | 12W Diode Laser |
|---|---|---|
| Power Output | Lower power, ideal for engraving | Nearly double the power, better for cutting |
| Engraving Capability | Fine engraving on soft materials like wood & leather | Faster, deeper engraving on more materials |
| Cutting Ability | Up to 3mm wood, basic acrylic cutting | Up to 8mm wood, clean 3mm acrylic cutting |
| Speed | Slower processing, may need multiple passes | Faster results with fewer passes |
| Precision | Slightly finer for detailed engraving | Still precise, but spot size may be slightly larger |
| Size & Power Consumption | Compact and energy-efficient | Larger module, needs stronger cooling |
| Recommended For | Hobbyists, DIY, education, small crafts | Pro users, small businesses, batch production |
👉 Tip: Choose 7W for compact, detailed engraving. Choose 12W for more power, speed, and cutting versatility.
