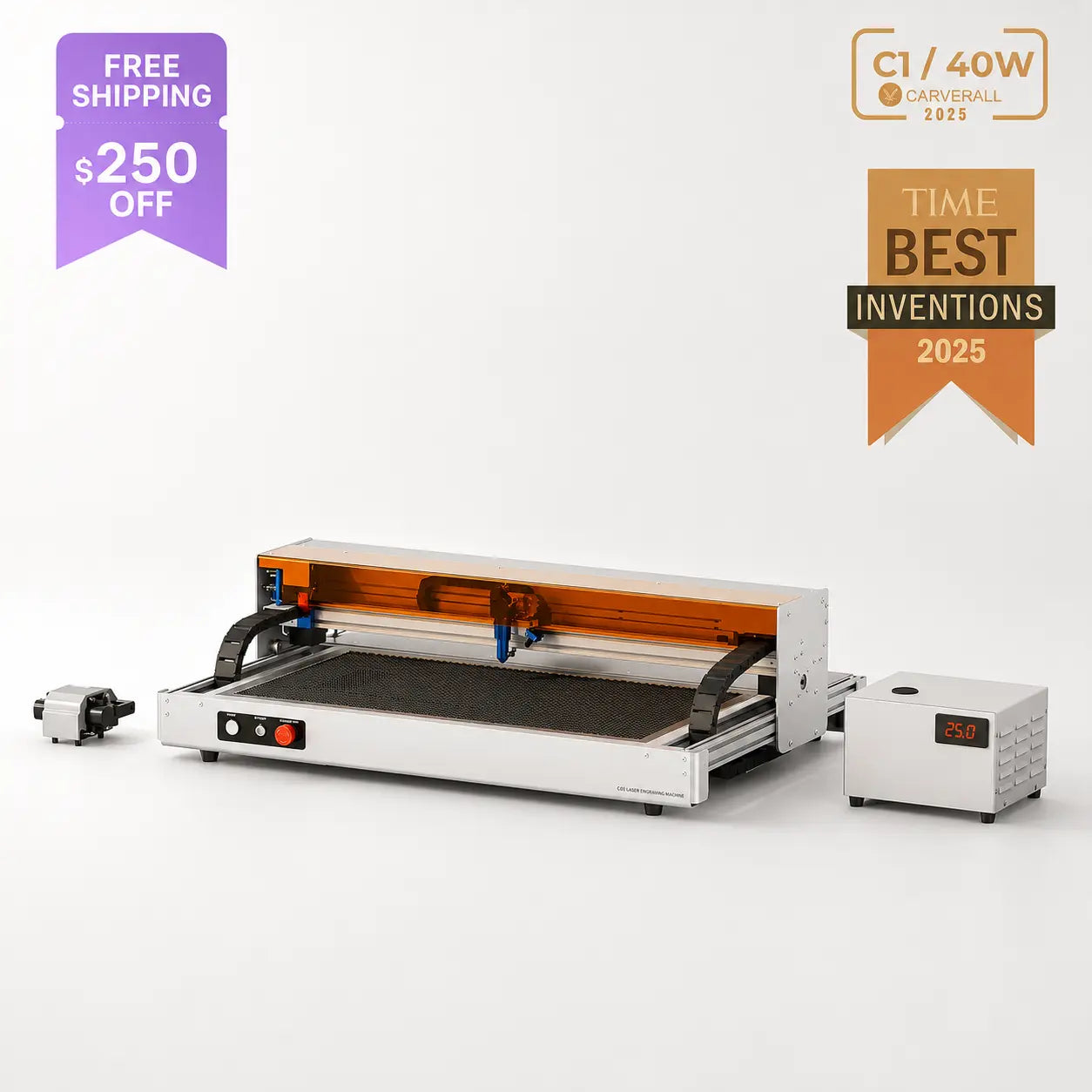

Carverall C1
40W CO₂ cutting, camera positioning and a 640 × 350 mm work area.
Free shipping & tax included · 2-year warranty
Built for more
Compact size. Production mindset.
Camera positioning, a large work area and included systems.
Cutting references vary by material, focus, air assist and settings. Test before production.
Think bigger. Create more.
Project idea
Layered wood decor
Describe the project, material and practical result in one or two concise sentences.
Project idea
Acrylic display pieces
Describe the project, material and practical result in one or two concise sentences.
Project idea
Acrylic display pieces
Describe the project, material and practical result in one or two concise sentences.
Project idea
Acrylic display pieces
Describe the project, material and practical result in one or two concise sentences.
Project idea
More materials, more ideas
Describe the project, material and practical result in one or two concise sentences.
Real customer stories
Real Users. Real Results. Real ROI.
Show verified customer outcomes, production wins and business stories. Add testimonial blocks below to replace the placeholders.
Customer nameStudio / Brand
Add a verified ROI result
Replace this placeholder with a verified customer result, practical outcome, or business story.
Customer nameStudio / Brand
Show a production gain
Replace this placeholder with a verified customer result, practical outcome, or business story.
Customer nameStudio / Brand
Highlight a real workflow win
Replace this placeholder with a verified customer result, practical outcome, or business story.
Customer nameStudio / Brand
Share a customer growth story
Replace this placeholder with a verified customer result, practical outcome, or business story.
Estimate your workflow
See what C1 could add to your studio
1
Choose a product idea
Pick a preset or use your own product.
From ideas to sellable productsWooden Sign
2
Adjust your assumptions
Fine-tune price, cost, monthly sales and operating expense.
Illustrative equipment payback—
—Estimated monthly contribution
—Estimated annual contribution
—Estimated monthly revenue
12-month profit forecastAccumulated net profit vs. equipment cost
Accumulated profitEquipment cost
Illustrative estimates only; not a guarantee.
One machine. More possibilities.
Make more. Waste less.
40W CO₂ power and a 640 × 350 mm work area.
40W
CO₂ laser power
640 × 350
Millimeter working area
15 / 10 mm
Wood / acrylic cutting reference
0.01 mm
Engraving precision

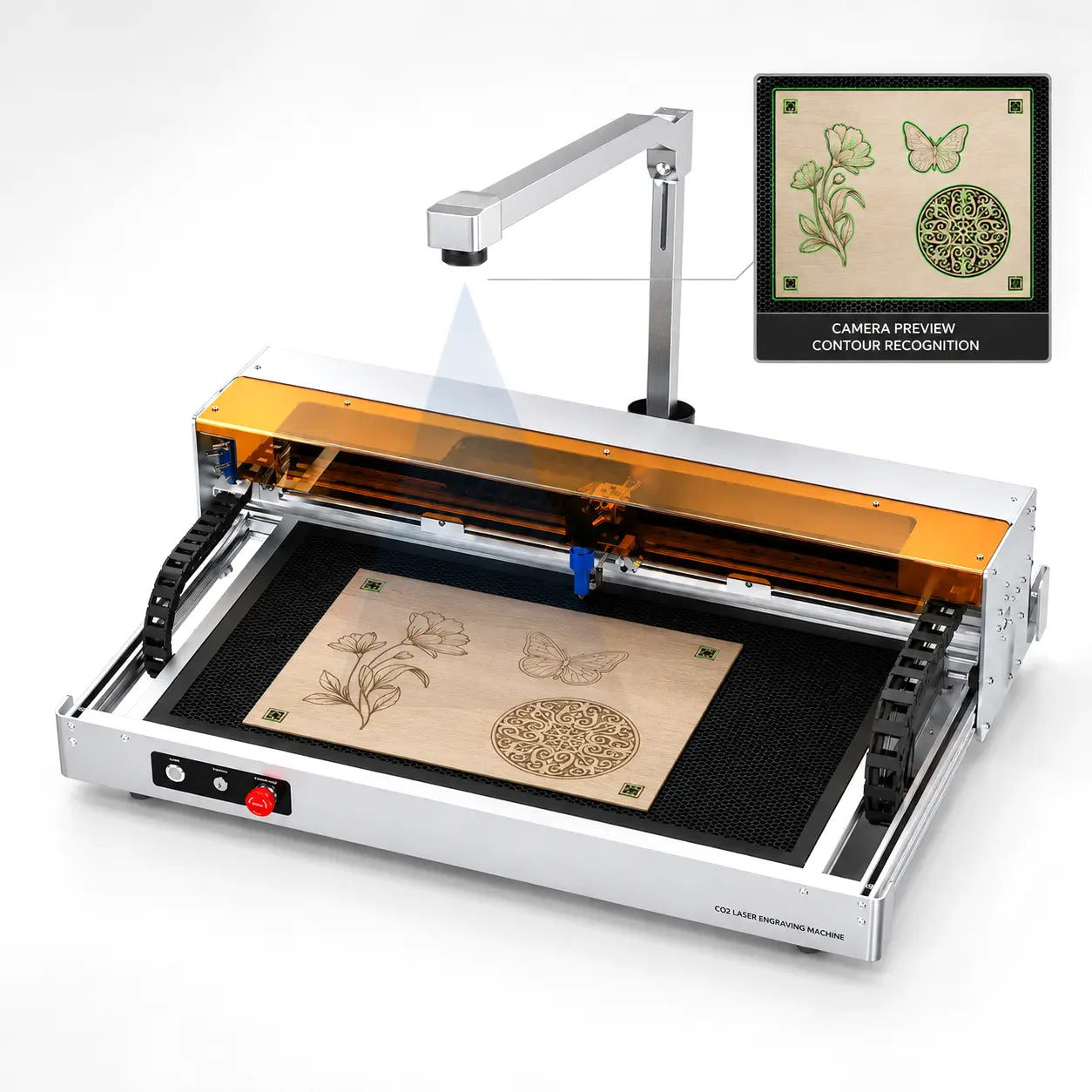

Visual positioning
From placement to production
Preview, position and support contour cutting.
Preview first
Preview the work area and align your design
Visual
Workspace preview
Flexible
Design positioning
Reference: up to 15 mm wood / 10 mm acrylic

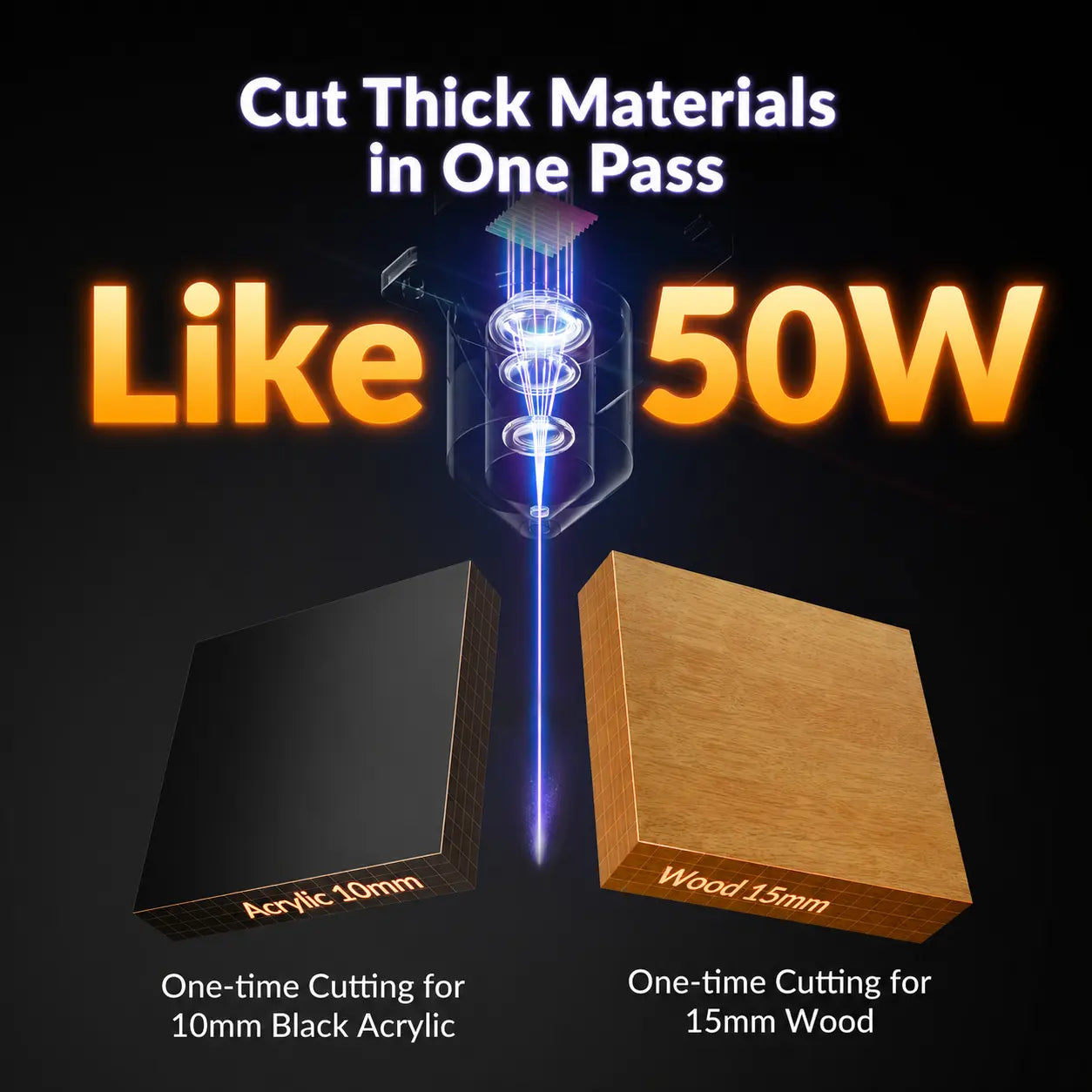

CO₂ cutting capability
Cut deeper across the materials that matter
Process wood, acrylic and other CO₂-compatible materials.
40W CO₂ source
Up to 15 mm wood
Up to 10 mm acrylic
CutLabX · LightBurn · computer · mobile
CutLabX + LightBurn

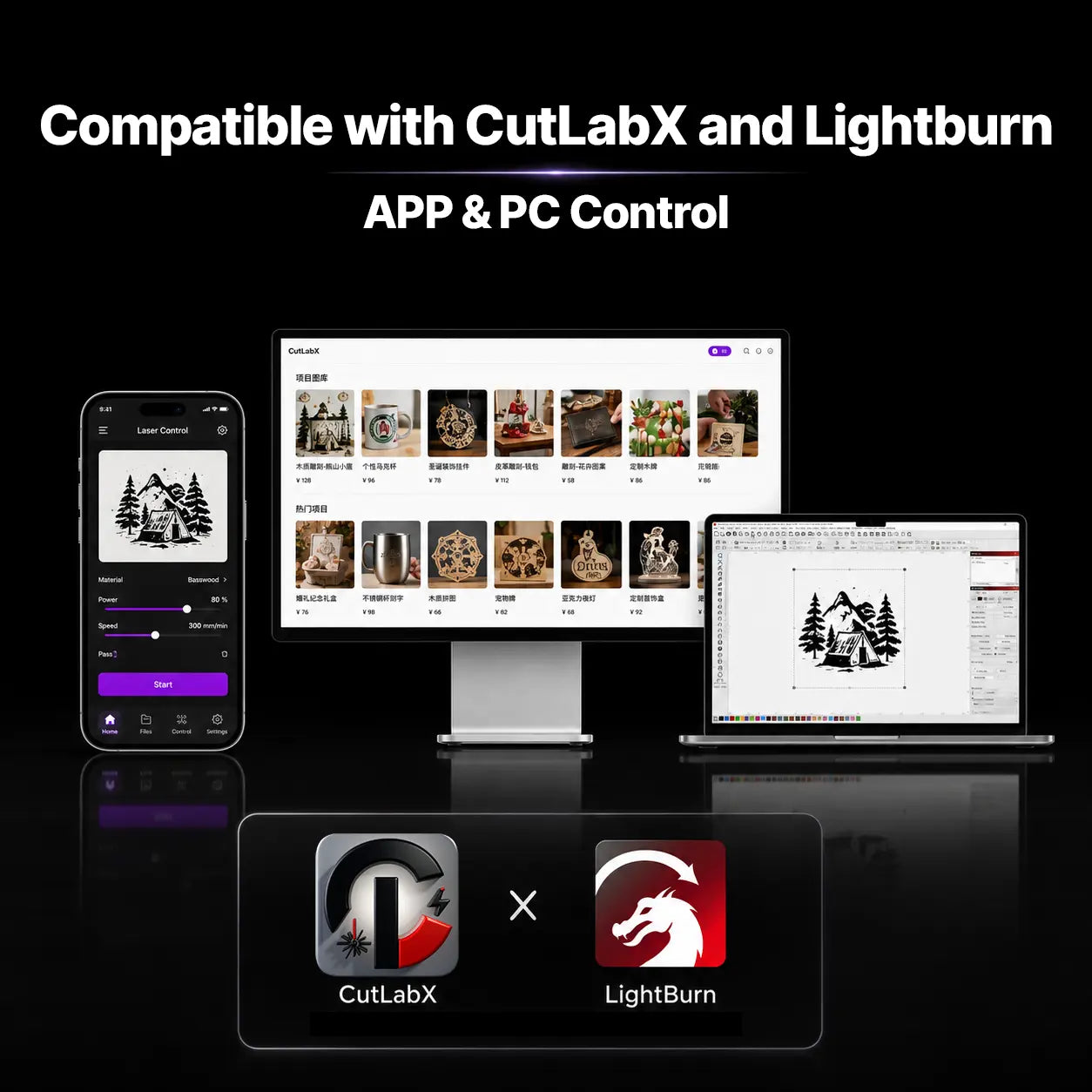

Use the software that fits the way you create
Create with CutLabX or LightBurn on supported devices.
CutLabX
LightBurn
Computer + mobile
Materials for more ideas
One CO₂ laser, a much wider creative catalog
Preview first
Wood projects with depth and detail
15 mm
Wood cutting reference
Detailed
Engraving and cutting
Always use suitable ventilation and active supervision

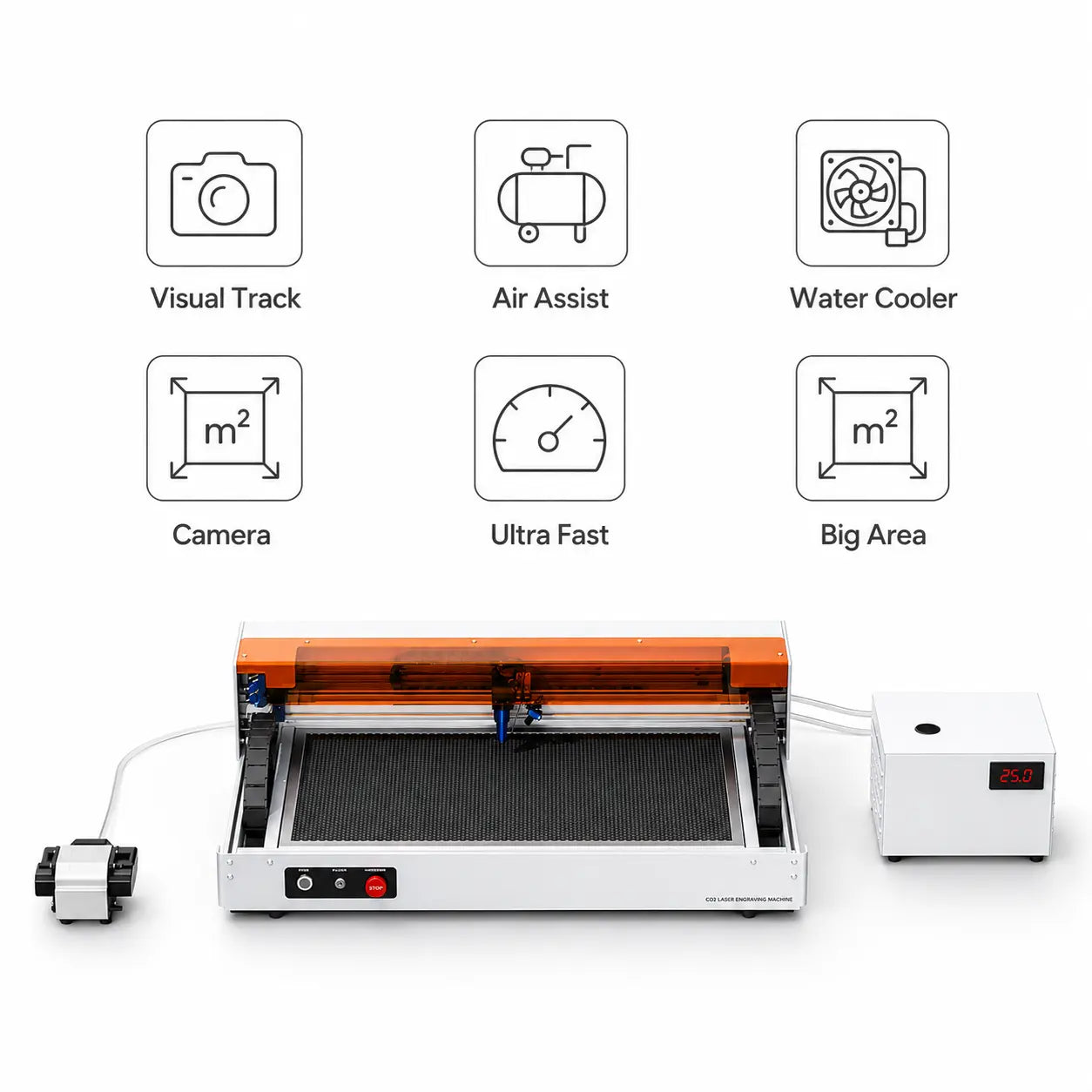

Built for stable operation
Air assist, cooling and enclosure work together
Matched air assist, water cooling and an enclosed format.
56 L/min air pump
Water cooling included
Enclosed desktop format
The practical upgrade
Why move up to the Carverall C1?
From hobby work to small-batch production.

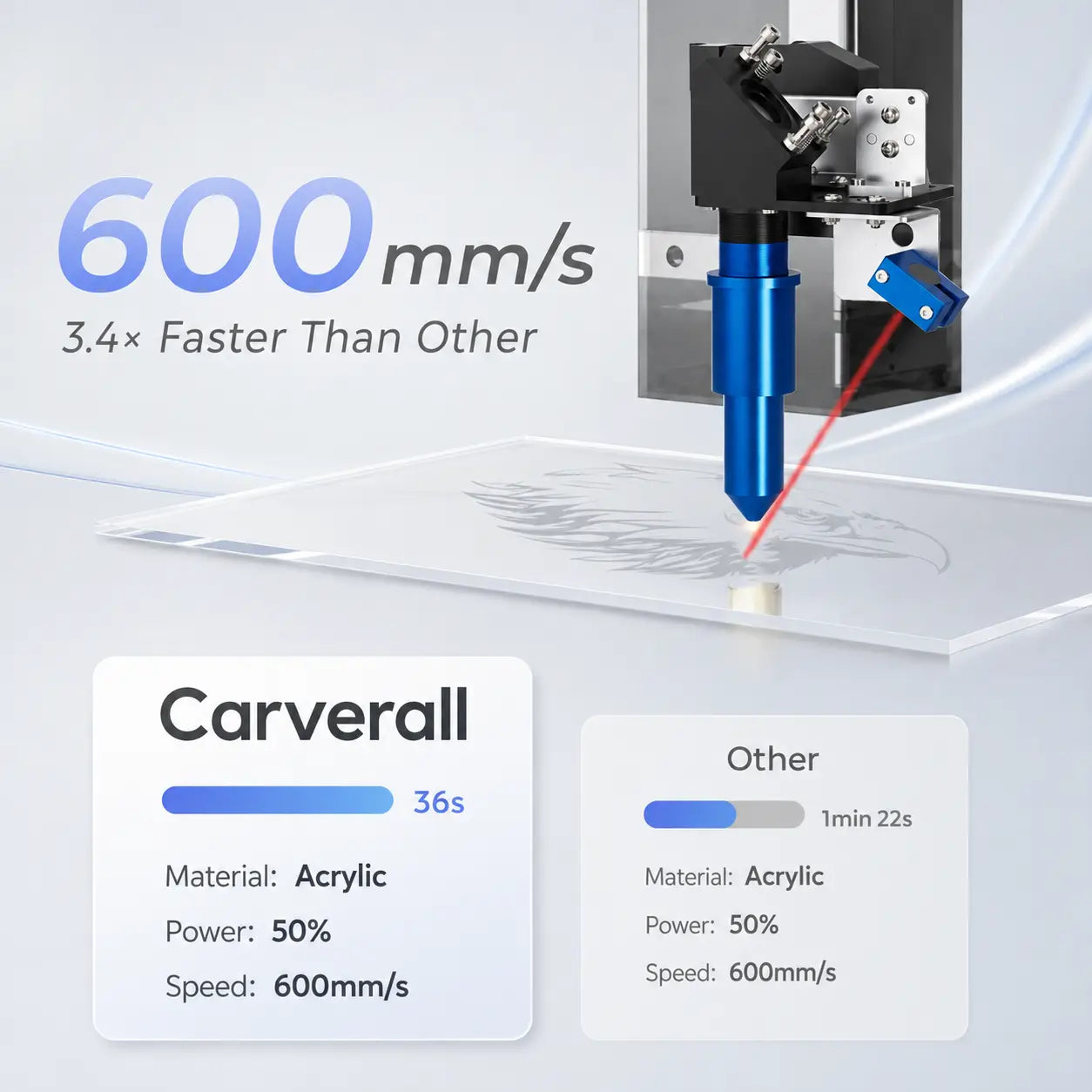

CO₂ advantage
Process clear and colored acrylic
Describe the practical advantage for this workflow, audience or application.
More capacity
Use a larger enclosed work area
Describe the practical advantage for this workflow, audience or application.

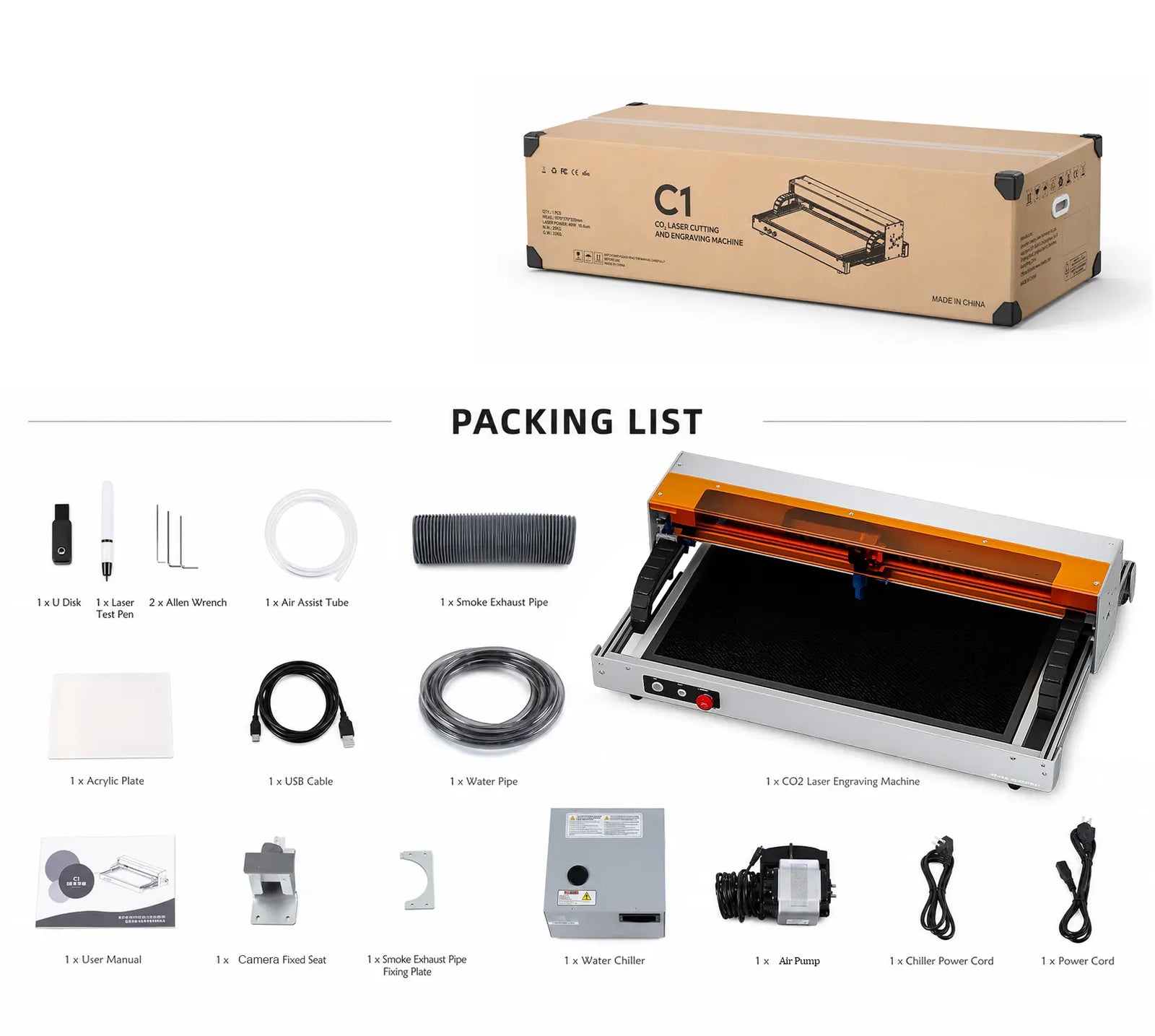

The essential setup is already in the box
Camera, honeycomb, air pump and water cooling included.
40W CO₂
Camera module
Explain the customer-facing benefit with a concise proof point, application or measurable result.
40W CO₂
Honeycomb bed
Explain the customer-facing benefit with a concise proof point, application or measurable result.
40W CO₂
Air pump
Explain the customer-facing benefit with a concise proof point, application or measurable result.
40W CO₂
Water cooling
Explain the customer-facing benefit with a concise proof point, application or measurable result.
Cutting references vary by material, focus, air assist and settings. Test before production.
Free shipping and tax included
Ready to create with CO₂?

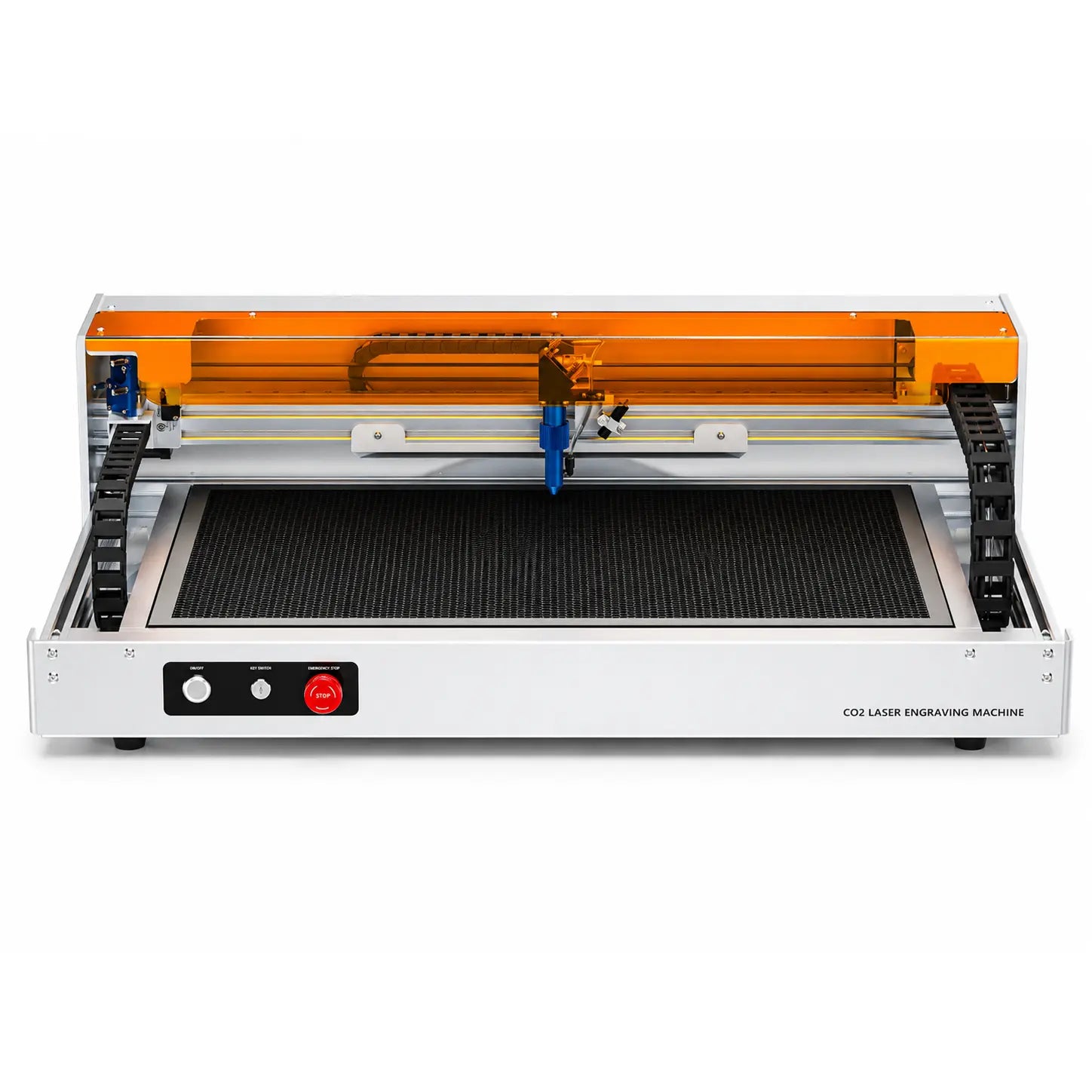

Choose Carverall C1 for your next workflow
A complete 40W desktop CO₂ setup with 110V and 220V options.
110V and 220V options
Free shipping and tax included
3-year warranty
1-to-1 after-sales support
Technical details
Specifications
Processing capability
Laser type
40W CO₂ laser
Supported materials
Wood, acrylic, leather, fabric, paper, rubber and other CO₂-compatible materials

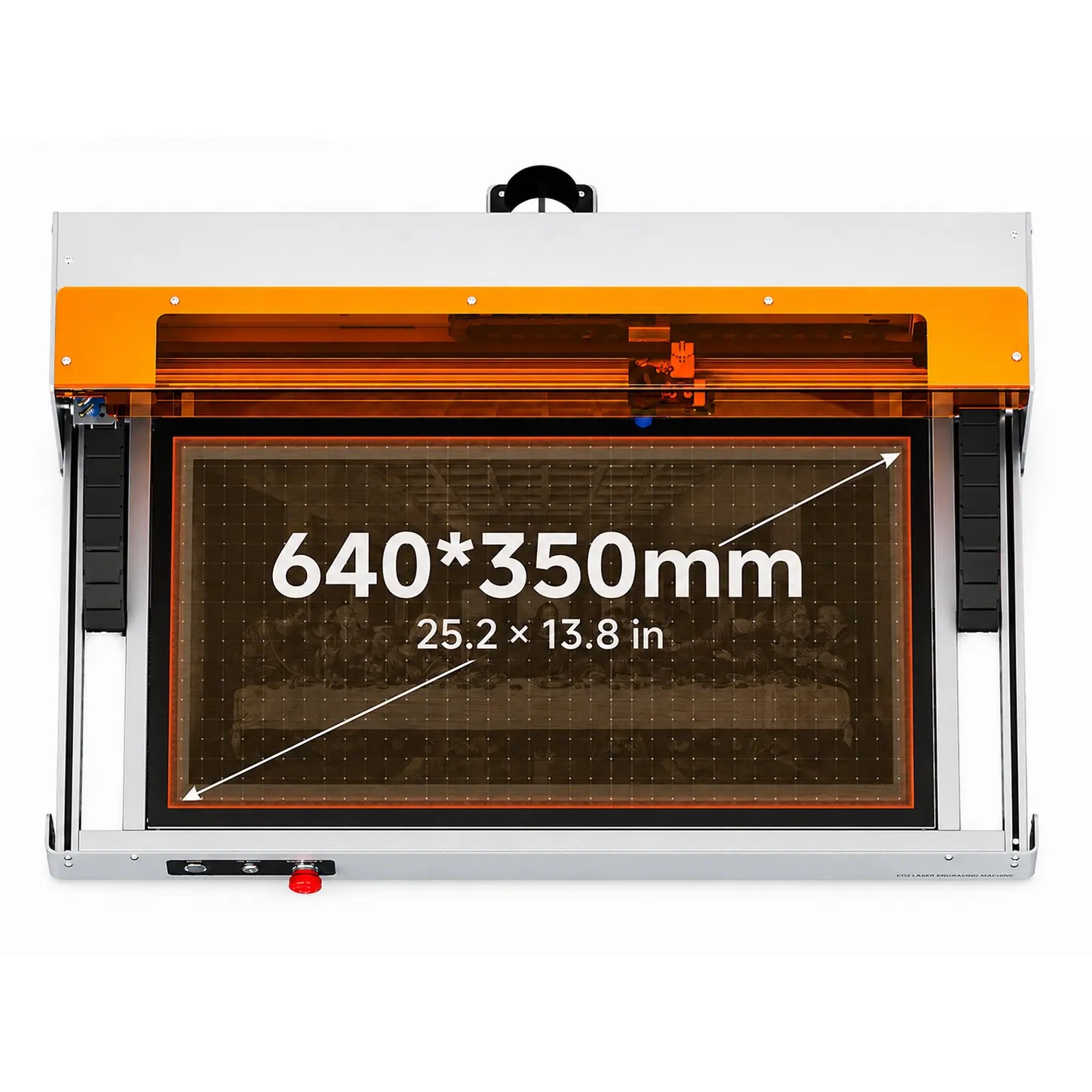

Working area
640 × 350 mm
Wood cutting reference
One Pass Max 15 mm
Acrylic cutting reference
One Pass Max 10 mm
Engraving precision
0.01 mm
Workflow and operation
Supported software
CutLabX and LightBurn
Air assist
56 L/min air pump included
Cooling
Water cooling system included
Purchase and support
Voltage options
110V / 220V variants
Warranty
3 years
Support
1-to-1 after-sales assistance and online service
Material performance varies with material type, density, focus, air assist, speed, power and other operating conditions. Test settings before production.
Carverall C1 40W CO₂ Laser Cutter FAQs
Find answers about compatible materials, cutting capacity, software, camera positioning, cooling, safety, maintenance and accessories for the Carverall C1.
What materials can the Carverall C1 engrave and cut?
The C1 can engrave and cut wood, plywood, MDF, acrylic, leather, paper, cardboard, cork, rubber, fabric and other CO₂-laser-compatible materials. It can also engrave glass, stone, ceramic and coated or anodized metal surfaces. Because material composition varies, we recommend testing a small sample before processing the final project.
How thick can the Carverall C1 cut?
Under suitable conditions, the 40W C1 can cut wood up to 15 mm and acrylic up to 10 mm. Maximum cutting capacity may require multiple passes and depends on material density, glue content, focus, air-assist airflow, laser power and cutting speed.
Can the C1 cut clear or transparent acrylic?
Yes. The C1 uses a 10.6 μm CO₂ laser that can cut many clear, transparent, translucent and colored acrylic sheets. This is an important advantage over blue diode lasers, which generally cannot process transparent acrylic effectively.
Can the C1 engrave or cut metal?
The 40W C1 cannot cut metal. It can engrave coated, painted or anodized metal by removing the surface coating. Bare stainless steel and other uncoated metals normally require a compatible laser-marking spray. For direct or deep metal engraving, a fiber laser is more suitable.
What is the working area of the C1?
The C1 provides a large 620 × 350 mm working area, making it suitable for larger signs, acrylic projects, decorations and batch production of smaller items. The maximum specified workpiece height is 75 mm.
Does the C1 include a camera?
Yes. The C1 features an HD camera for visual positioning, work-area preview and automatic edge detection. The camera helps align designs with the material and supports contour cutting for printed graphics and irregularly positioned workpieces.
Is LightBurn compatible with the C1?
Yes. The C1 supports both LightBurn and Carverall’s CutLabX software. LightBurn provides advanced design and laser-control tools, while CutLabX offers a simpler, beginner-friendly workflow. CutLabX supports Windows and macOS.
What file formats does the C1 support?
Supported formats include JPG, JPEG, BMP, PNG, GIF, PLT, HPGL and DXF. Actual import and output options may vary depending on whether you use CutLabX or LightBurn.
Does the C1 require assembly?
The C1 is delivered largely assembled. After unpacking, connect the required cables, water-cooling system, air pump and exhaust hose, install the software, focus the laser and perform a material test before beginning your first project.
Are water cooling and air assist included?
Yes. The C1 includes a water-cooling system and air pump. Water cooling helps maintain a stable laser-tube temperature during longer jobs. Air assist helps reduce smoke and burn marks, protects the lens and improves cutting-edge quality.
Does the C1 require external ventilation?
Yes. CO₂ laser engraving and cutting can produce smoke, odors and airborne particles. Connect the included exhaust hose to a safe outdoor location or use a suitable smoke purifier when working indoors.
What materials should never be processed with the C1?
Do not process PVC, vinyl or unknown materials that may release toxic or corrosive gases when heated. Also avoid highly reflective materials or materials with unknown chemical compositions until their laser compatibility has been confirmed by the manufacturer.
Can the C1 engrave tumblers and cylindrical objects?
Yes. The C1 supports an optional rotary attachment for engraving compatible cylindrical and curved objects such as tumblers, bottles, cups and round containers. Confirm the object diameter, weight and available internal height before selecting a rotary accessory.
Is the C1 suitable for beginners?
Yes. The enclosed design, camera positioning, air assist, water cooling and compatibility with CutLabX and LightBurn make the C1 suitable for both beginners and experienced makers. New users should begin with recommended settings and run a small material test before every new project.
Is the C1 safe for home or studio use?
The C1 uses an enclosed design and includes an emergency stop button, limit switches, safety sensors and a protective viewing window. However, proper ventilation, active supervision and fire-safety precautions are still required. Never leave the machine unattended while it is operating.
What voltage versions are available?
The C1 is available in regional 110V and 220V versions. Select the version that matches the electrical standard in your destination country and confirm the plug type before ordering.
How large and heavy is the C1?
The machine measures approximately 900 × 640 × 251 mm and weighs about 16.22 kg. The complete system with the water-cooling unit, air pump and honeycomb panel weighs approximately 25 kg. A strong, level workbench is recommended.
How long does the CO₂ laser tube last, and can it be replaced?
The CO₂ laser tube is a replaceable consumable. Its actual service life depends on operating power, cooling-water temperature, duty cycle, working environment and maintenance. Keeping the cooling system clean and avoiding unnecessary continuous operation at maximum power can help extend tube life.
What regular maintenance does the C1 require?
Regularly clean the lens and mirrors, remove debris from the work area, inspect the exhaust and air-assist paths, check mirror alignment and maintain clean cooling water at the recommended temperature. Disconnect the machine from power before cleaning or servicing it.
What warranty and after-sales support are included?
The current C1 offer includes a 12-month warranty and 24-hour online after-sales support. Customers can contact Carverall for software setup, operating guidance, troubleshooting and replacement-part assistance. Coverage is subject to the applicable warranty terms and exclusions.
