Deep metal engraving is different from ordinary laser marking. A readable serial number may only need a shallow surface change, but a durable recessed logo, die-like texture, mold insert, tool mark, or decorative relief requires controlled material removal over many passes. That changes the way you should think about power, pulse behavior, focus, heat, hatch strategy, and finishing.
The Carverall Z12 fiber laser platform is available in configurations suited to different jobs. Standard flat-fiber versions are efficient for routine metal marking; the 60W MOPA configuration adds broader pulse control for demanding engraving and surface-finishing work; and the 50W 3D configuration is designed for relief workflows where the shape itself changes in depth. This guide explains how to choose among them and how to build a repeatable deep-engraving process.
What “deep engraving” actually means
In laser work, “marking” and “engraving” are often used interchangeably, but the process goal matters. Surface marking prioritizes contrast, legibility, and speed. Deep engraving prioritizes measurable material removal while keeping edges, fine details, and the surrounding surface under control.
That means a good deep-engraving recipe is rarely “maximum power and minimum speed.” Driving too much heat into one location can widen edges, increase recast, discolor the surrounding area, soften fine details, and make the finish harder to clean. A more useful approach is to separate the job into roughing and finishing: remove material efficiently first, then use a cleaner final strategy to refine walls, floors, and edges.
Why 60W MOPA is the most flexible Z12 choice for deep flat engraving
For many flat metal parts, the Z12 60W MOPA is the strongest all-around choice in the range because it combines useful power with adjustable pulse behavior. MOPA fiber sources allow more independent control of parameters such as pulse width and repetition frequency than a conventional fixed-pulse approach. That extra control matters because deep engraving is a balance between ablation efficiency and unwanted heat accumulation.
JPT’s technical material on MOPA pulse control explains how changing pulse characteristics changes the way energy is delivered to the workpiece. Likewise, RP Photonics’ laser-marking reference discusses how pulse duration and repetition behavior influence material interaction and heat-affected zones. The practical takeaway is simple: there is no single “best MOPA setting.” The best combination depends on the alloy, desired depth, spot size, hatch interval, speed, number of passes, and finish target.
For a production workflow, the 60W MOPA is especially attractive when you need several jobs from one machine: deep logos on tools, recessed text on stainless steel, brass or coated parts, high-contrast black marks, selected color-marking applications, and ordinary serial-number or data-matrix work. If your work is mostly flat and you want both engraving depth and surface-control flexibility, this is the configuration to start with.
Where standard flat fiber still makes sense
A standard 20W or 30W flat-fiber configuration should not be dismissed. It is often the simpler and more economical option when your primary work is logos, serial numbers, QR codes, nameplates, anodized aluminum, coated metals, plastics compatible with a 1064 nm fiber source, or relatively shallow metal engraving.
It can also produce deeper engraving with enough passes, but cycle time rises and thermal management becomes more important. If deep material removal is a frequent revenue-generating task rather than an occasional requirement, the 60W MOPA generally gives you more process headroom. For a broader model comparison, see our Z12 60W MOPA vs 50W 3D vs standard fiber guide.
When the 50W 3D Z12 is the better tool

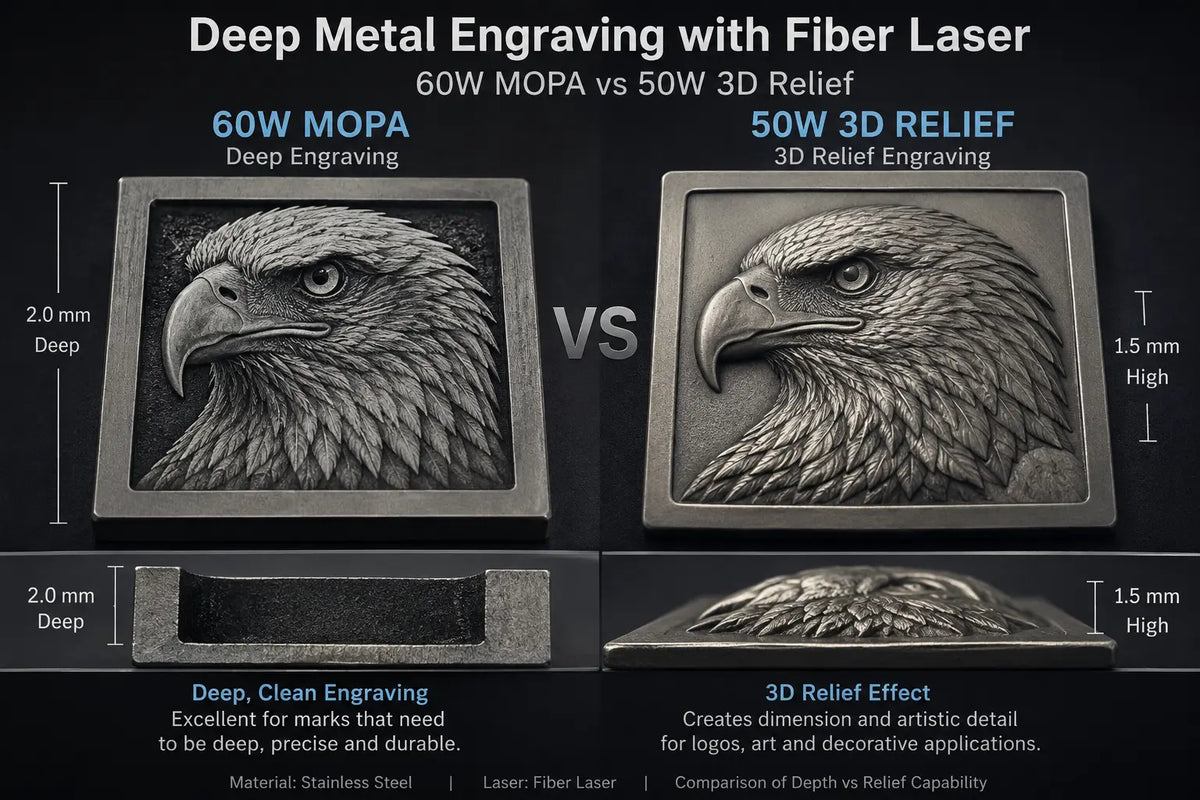

Deep engraving and 3D relief are related, but they are not identical. A flat galvo system can engrave multiple depth layers by repeating patterns, yet a true 3D workflow is more suitable when the design intentionally contains different Z heights across a sculpted surface.
The Z12 50W 3D configuration is the better choice for work such as coins, medals, badges, relief portraits, decorative molds, textured dies, or other designs built from grayscale height maps or 3D depth data. Its advantage is not simply “more depth.” Its advantage is the ability to manage focus as the commanded surface height changes, making it easier to preserve detail across a relief rather than treating the entire design as one flat plane.
If your goal is a recessed flat logo 0.2–0.5 mm deep, you usually do not need a 3D system just because the engraving has depth. If the artwork itself contains sculpted peaks, valleys, slopes, and multiple focal heights, 3D capability becomes much more valuable.
| Job | 20W/30W Standard Fiber | 60W MOPA | 50W 3D Fiber |
|---|---|---|---|
| Serial numbers / QR codes | Excellent | Excellent | Capable, but usually unnecessary |
| Deep flat logos and text | Possible, slower | Best all-around choice | Capable, but 3D functions may be unused |
| Black / controlled surface marking | Material dependent | Most flexible | Secondary use case |
| Sculpted coins and reliefs | Limited workflow | Possible with layered strategies | Best choice |
| Routine flat industrial marking | Cost-effective | High flexibility | More capability than needed |
A repeatable 60W MOPA deep-engraving workflow
1. Start with the material, not a settings chart
Two parts that look similar can behave differently because of alloy, coating, temper, surface finish, or thermal conductivity. Before committing to a customer part, use a coupon from the same material whenever possible. Record the exact material, lens, focal setup, hatch pattern, and software parameters so the successful recipe can be repeated.
2. Confirm focus and lens choice
A larger field lens is convenient for bigger parts but generally trades away some spot-size advantage. For fine detail and efficient material removal, use the smallest practical field size that still fits the job. Confirm focus on the actual top surface before testing. As engraving becomes significantly deeper, check whether a staged focus adjustment improves the later passes rather than assuming the original top-surface focus remains optimal throughout the entire cavity.
3. Build a material test instead of guessing
LightBurn’s Material Test can generate controlled test grids for parameters such as speed, power, interval, and passes. On supported MOPA galvo devices, its testing workflow can also help evaluate frequency and Q-pulse combinations. The related Galvo-Specific Cut Settings documentation explains the MOPA Q-Pulse Width control.
For deep engraving, do not search only for the darkest square. Look for the cell that removes material cleanly, keeps edges crisp, and does not create excessive slag or heat tint. Then inspect it under magnification. A visually aggressive setting is not always the fastest route to a clean finished cavity.
4. Use multiple roughing passes
Deep engraving is usually more controllable when material is removed in repeated layers. A cross-hatch or alternating-angle hatch strategy can reduce directional texture and distribute energy more evenly. Instead of one extremely slow pass, test a faster multi-pass strategy and compare total cycle time, wall quality, and cleanup effort.
If loose debris builds up, pause at logical intervals to remove it. Repeatedly scanning through a thick layer of redeposited material can make later passes less consistent. Airflow or extraction should remove contaminants without blowing hazardous particles toward the operator.
5. Treat the final passes as a finishing operation
Once you are near the target depth, stop optimizing for maximum removal. A finishing layer can use a different hatch angle, spacing, speed, frequency, or pulse width to improve the floor and edge appearance. On MOPA systems, this is where pulse flexibility becomes particularly useful: the roughing recipe and finishing recipe do not have to be the same.
If your application requires a black or colored surface effect after engraving, build that as a separate final process rather than expecting the deep-removal settings to create the desired contrast automatically. Our 60W MOPA stainless-steel black and color marking guide covers that workflow in more detail.
6. Measure depth and record the recipe
Use a suitable depth gauge, microscope, profilometer, or other measurement method appropriate to your tolerance. Record depth after a known number of passes. Once you know the average removal per process block, you can estimate cycle time and create a repeatable production recipe instead of relying on visual judgment.
For more detail on the relationship among pulse width, frequency, speed, and power, refer to our 60W MOPA settings guide.
Deep engraving cylindrical parts
Rings, tubes, cups, and other cylindrical metal parts add another variable: the surface must stay correctly oriented to the beam while the design wraps around the circumference. A rotary fixture reduces manual repositioning and makes repeatable alignment much easier. The Carverall MD18 rotary chuck is designed for cylindrical and irregular workpieces where stable clamping and indexing matter.
For deep rotary engraving, test a small section first. Depth changes the effective surface geometry, and very deep cavities on a curved part may require a different strategy from a shallow wraparound mark.
Heat management: the difference between depth and damage
More material removal means more energy entering the part. Thin metal, small components, sharp features, and heat-sensitive finishes can distort or discolor before a thick tool-steel block shows obvious problems. Watch the part temperature and consider shorter process blocks with cooling intervals when necessary.
Pulse control can help, but it does not replace process discipline. A 60W MOPA source gives you more ways to shape the energy delivery; it does not make every high-energy setting safe for every alloy. Test the actual material and evaluate both the engraving and the surrounding surface.
Safety and fume extraction are part of the process
Deep engraving produces more particulate and process emissions than many light surface marks. OSHA’s laser-hazard guidance notes that laser-material interactions can create hazardous fumes and vapors and that appropriate ventilation is necessary. Use suitable eye and skin protection, follow the laser manufacturer’s safety requirements, control reflections, and provide effective local exhaust or filtration for the material being processed.
For workspaces that need additional beam containment, see the Carverall fiber laser safety enclosure. An enclosure is only one part of a complete safety system; operating procedures, extraction, training, and material-specific hazard assessment still matter.
Common mistakes that slow down deep engraving
- Copying a universal settings chart. Use published settings as a test starting point, not a production guarantee.
- Running one excessively hot pass. Compare multi-pass strategies; they often produce cleaner walls and more predictable depth.
- Ignoring hatch direction. Alternating angles can reduce directional grooves and improve uniformity.
- Never checking focus again. Significant depth can change the best focal strategy.
- Judging only by darkness. Contrast is not the same as material removal.
- Skipping cleanup between process blocks. Debris and redeposition can reduce consistency.
- Using deep-removal settings as the finish pass. Separate roughing from finishing for better surface quality.
FAQ: Z12 deep metal engraving
Is 60W MOPA enough for deep metal engraving?
Yes, for many flat metal engraving applications a 60W MOPA fiber laser provides a strong balance of removal capability, pulse flexibility, and detail. Required depth and cycle time still depend on material, lens, geometry, and process settings.
Is MOPA always better than standard fiber for engraving?
No. Standard fiber is highly effective for routine industrial marking and shallow engraving. MOPA becomes more valuable when you need wider control over pulse behavior, multiple surface effects, or a broader process window for demanding materials and finishes.
Should I choose 60W MOPA or 50W 3D for coins?
If the coin design is a true sculpted relief with continuously changing heights, the 50W 3D configuration is usually the more appropriate workflow. If you are engraving a flat recessed design or deep text, the 60W MOPA can be the more flexible production choice.
How many passes does deep engraving need?
There is no universal number. It depends on the target depth, alloy, spot size, hatch interval, pulse settings, and acceptable cycle time. Establish removal rate on a test coupon, measure depth after a known pass block, and scale from that result.
Can I deep engrave cylindrical metal parts?
Yes. A rotary chuck can hold and index cylindrical parts, but curved geometry and changing depth make setup more important. Test alignment and depth on a sacrificial sample before processing a finished part.
What is the best way to find 60W MOPA deep-engraving settings?
Use a structured material test. Change one or two variables at a time, evaluate material removal and edge quality, then separate the final production recipe into roughing and finishing stages. Save the material, lens, focus, hatch, frequency, pulse width, speed, power, and pass count with the job file.
Which Z12 configuration should you choose?
If most of your work is routine logos, codes, and shallow marks, a standard flat-fiber Z12 can be the most efficient investment. If you want one machine to cover routine marking plus deeper flat engraving, black marking, and a wider range of pulse-controlled processes, the Z12 60W MOPA is the most versatile choice. If your business centers on sculpted coins, medals, dies, and true height-map reliefs, the Z12 50W 3D is the more specialized tool.
Explore the Carverall Z12 fiber laser engraver or browse more practical setup and parameter articles in Z12 Tutorials.
