How to Foucs

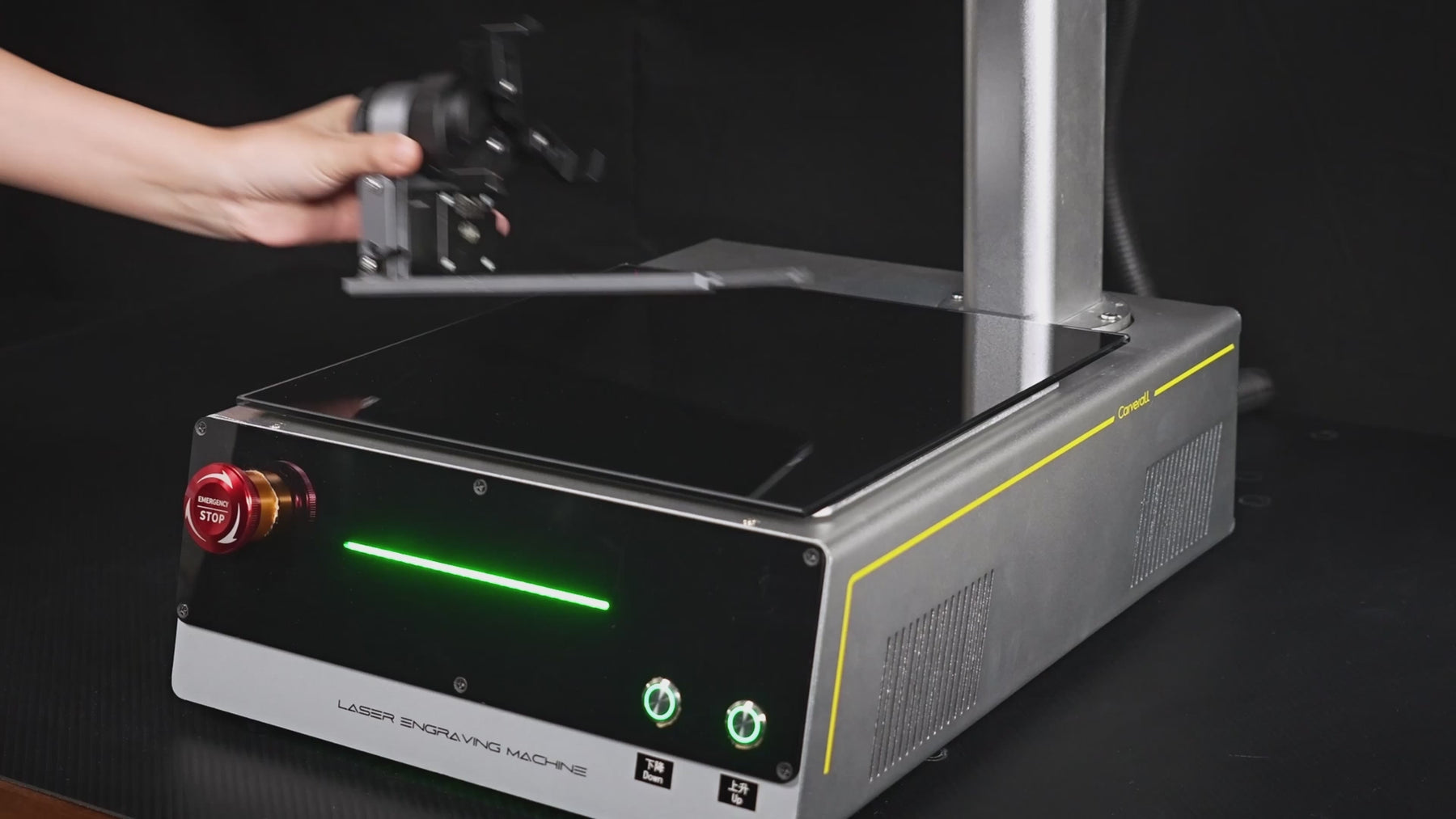

Electric Lifting and Focus with 3-Dots Overlap
Carverall Z12
60W MOPA color. 50W 3D relief. A new dimension for your ideas.
Features
Three ways to make it yours.
Start with the finish you want.
60W MOPA / RELIEF / jpt lASER SOURCE

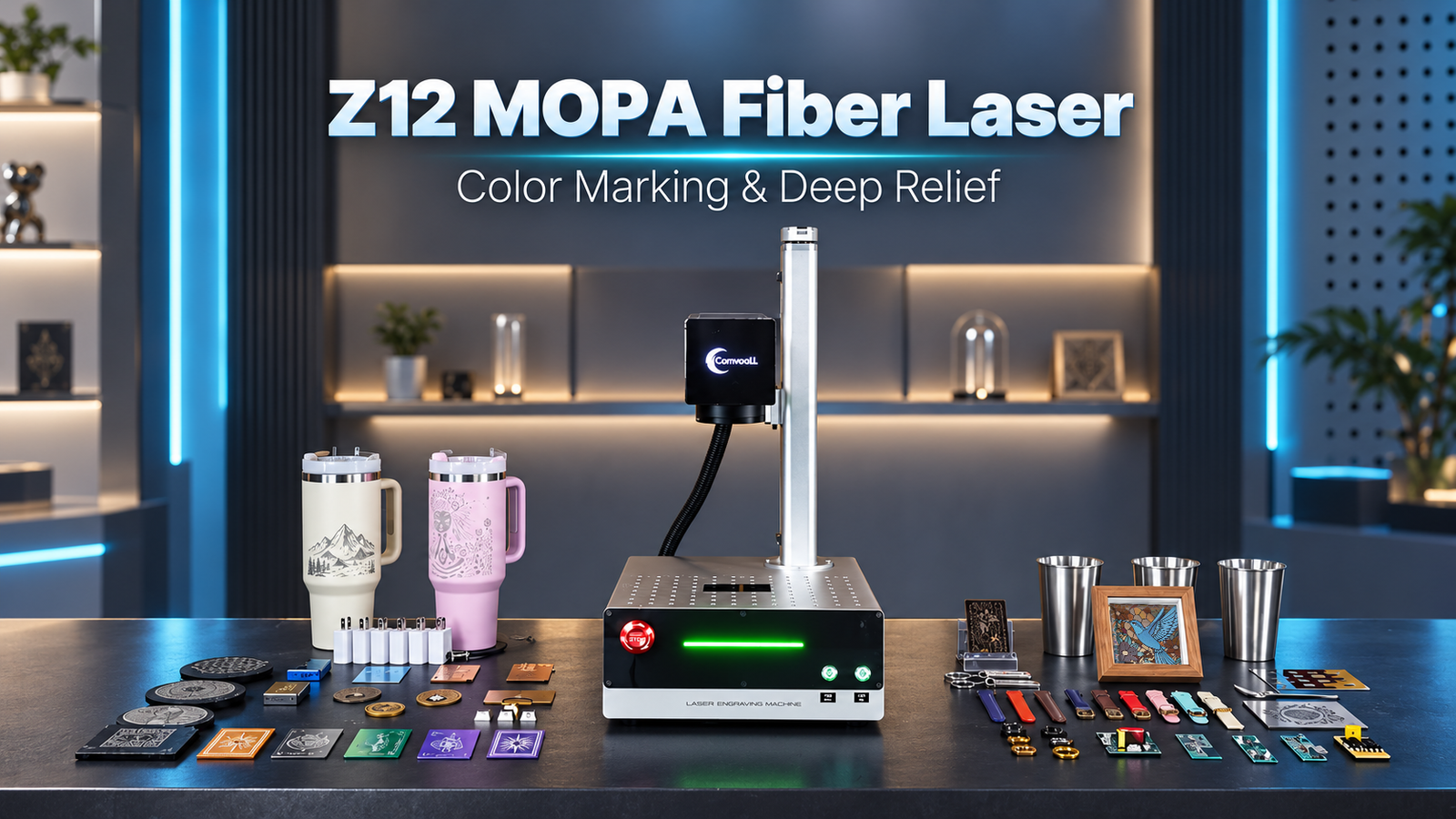

Bring Metal to Life with Color
Turn stainless steel into a canvas for vibrant colors with the Z12 60W MOPA. Create personalized jewelry, distinctive tags, and custom giftsโwithout inks or pigments.
60W MOPA
Make color your design.
Easy to get your color vivid.
50W 3D / RELIEF / MAX LASER SOURCE
Carve 3D Depth. Reveal Every Detail.
Bring intricate designs to life with the Z12 50W 3D version. Create detailed relief engravings on metalโfrom custom coins to decorative piecesโwith striking depth and texture.
50W 3D
Give your ideas depth.
All metal projects Covered
Why Carverall Z12 Stand Out
Designed for professionals, every detail of the Z12 is engineered to deliver greater precision, lasting reliability, and a smoother engraving experience from setup to production.
Laser Lifespan
100,000-Hour/JPT or MAX Laser Source
8K Resolution
0.01mm fine-line accuracy for detailed marks
Beyond Workbench
Loosen the screw, then rotate 90ยฐ for installation.
Upgrade Your Workspace.
200mm x 200mm Max Print Field, Engineered for Greater Capacity and Performance.
Free F-Lens Bonus
Basic in 200*200mm Lens, free gift of a random 110*110*mm or 150*150mm.
Max Metal Cutting Capability
The cutting results shown are based on tests in good edge
Stainless steel & brass cutting
Effortlessly Cutting Through Metal
The Ultimate ROI Machine
30% Cheaper
Start Price: 1280us$
50% Faster
Faster Speed: 15,000mm/s
300% Larger
Larger Size: 200*200mm
See Z12 in action.
60W MOPA
Name Plate
Discover vibrant color marking on stainless steel with precise, permanent results.
MD18 Rotary Chuck
360ยฐ Rotary Engraving
Process on rings, tumblers, cylindricals with seamless precision.
Wide Compatibility
200+ Materials
Explore engraving on metals, plastics, leather, stone, acrylic, and much more.
Ideas worth a closer look.
Real People. Real Z12 Stories.
Meet the makers behind the machines. Explore everyday moments with the Z12, captured and shared by our customers.
Desktop studio
Your ultimate home companion for crafting personalized items with precision.ย
Small Workshop
It helps craftsmen enhance production capability and project quality.
Souvenir Business
Perfect for custom keychains, ornaments, keepsakes, and branded mementos.
In-House Use
Custom gifts and decor to unique pet tags for dogs and cats.
Diverse Accessories Simplify Creations
What's in the Basic Bundle
Carverall Z12 Compare
Swipe left to compare all models โ
| Product | Z12 20W Standard Fiber | Z12 30W Standard Fiber | Z12 50W 3D 3D Relief Engraving | Z12 60W MOPA MOPA Fiber |
|---|---|---|---|---|
| Laser Technology | ||||
| Laser Type | Fiber Laser | Fiber Laser | 3D Fiber Laser | MOPA Fiber Laser |
| Laser Power | 20W | 30W | 50W 3D | 60W MOPA |
| Laser Wavelength | 1064 nm | 1064 nm | 1064 nm | 1064 nm |
| Expected Lifespan | 100,000 hours | 100,000 hours | 100,000 hours | 100,000 hours |
| Laser Source | MAX | MAX | MAX | JPT |
| Processing Capacity | ||||
| Processing Mode |
Laser Engraving Laser Cutting |
Laser Engraving Laser Cutting |
Laser Engraving Laser Cutting 3D Relief Engraving |
Laser Engraving Laser Cutting MOPA Color Marking |
| Supported Materials | Stainless steel, aluminum, brass, copper, gold, silver, stone, black acrylic, leather and plastic | |||
| Working Area | 4.33โณ ร 4.33โณ (110 ร 110 mm) 5.9โณ ร 5.9โณ (150 ร 150 mm) โ optional lens 7.8โณ ร 7.8โณ (200 ร 200 mm) โ optional lens | |||
| Max. Working Speed | 15,000 mm/s | 15,000 mm/s | 15,000 mm/s | 15,000 mm/s |
| Max. Stainless Steel Cutting Capacity Multiple passes required | 0.6 mm | 0.8 mm | 1.6 mm | 2 mm |
| Color Marking | Supported | Supported | Supported | Advanced MOPA Color Marking |
| 360ยฐ Rotary Engraving | Supported | Supported | Supported | Supported |
| Foot Pedal Function | External Foot Pedal | External Foot Pedal | External Foot Pedal | External Foot Pedal |
| Power Adapter Input Voltage | 100โ230V | 100โ230V | 100โ230V | 100โ230V |
| Accuracy & Precision | ||||
| Laser Spot Size | 0.01 mm | 0.01 mm | 0.01 mm | 0.01 mm |
| XY Positioning Accuracy | 0.001 mm | 0.001 mm | 0.001 mm | 0.001 mm |
| Focus Mode |
Electric Focus Manual Focus |
Electric Focus Manual Focus |
Electric Focus Manual Focus |
Electric Focus Manual Focus |
| Software & Compatibility | ||||
| Supported Software |
EZCAD LightBurn |
EZCAD LightBurn |
RK-CAD |
EZCAD LightBurn |
| Operating System | Windows / macOS | Windows / macOS | Windows / macOS | Windows / macOS |
| Connection Method | USB | USB | USB | USB |
| Supported File Formats | BMP, GIF, JPG, JPEG, DXF, DST, AI, TGA, PNG, TIF, TIFF, SVG, G-CODE, PLT and more | |||
FAQ
What Materials Can the Z12 Fiber Laser Engrave?
The Z12 is designed primarily for metal marking and engraving, including stainless steel, aluminum, brass, copper, gold, silver, coated metals and anodized aluminum. It can also mark certain engineering plastics. Suitability and results depend on the material, laser version and settings.
Does the Z12 Support Rotary Engraving?
Yes. The Z12 supports a compatible MD18 rotary attachment for cylindrical objects such as rings, tubes and tumblers. Check the attachment, object dimensions and your selected package before ordering; a rotary attachment is not included with every configuration.
Can the Laser Arm Be Adjusted for Different Engraving Angles?
Yes. The Z12 has a 90ยฐ rotatable laser arm for flexible positioning when working with large or irregularly shaped objects. Follow the machine's setup instructions and refocus after changing the working position.
Does the Z12 Have Electric Height Adjustment?
Yes. Electric Z-axis lifting lets you adjust the laser head height using the controls when working with objects of different heights. Electric lifting is height adjustment, not automatic focusing; the correct focus still needs to be set for your lens and workpiece.
Which Z12 Version Should I Choose?
- 20W: For everyday metal marking and fine engraving.
- 30W: A higher-power option for metal marking and engraving.
- 50W 3D: For relief-engraving workflows with the matching software.
- 60W MOPA: For adjustable-pulse marking, including color-marking applications on suitable metals.
Choose according to your materials and intended results, not power alone.
Which Software Does the Z12 Use?
Software compatibility depends on the installed controller and Z12 version. The current product comparison lists EZCAD and LightBurn for the 20W, 30W and 60W MOPA versions, and RK-CAD for the 50W 3D version.
Confirm the required software, operating system, controller compatibility and licence for your specific machine before purchase. Do not assume every version supports the same software or relief workflow.
Is the Z12 Suitable for Beginners?
The Z12 can suit committed beginners as well as professional users. Allow time to learn focusing, material settings and the software workflow, and begin with test pieces. Read the supplied safety instructions and use the required protective measures before operating the machine.
What Is the Difference Between MOPA and Standard Fiber Lasers?
Standard fiber lasers are well suited to many metal-marking tasks, including text, logos, serial numbers and QR codes. MOPA adds greater control over pulse duration and frequency, offering more flexibility for selected materials and finishes.
The Z12 60W MOPA is the option to consider for color marking on suitable stainless steel and titanium. Color and surface quality depend on the material, preparation and settings; results are not guaranteed on every metal. For dedicated relief workflows, compare the 50W 3D configuration and its software as well.
